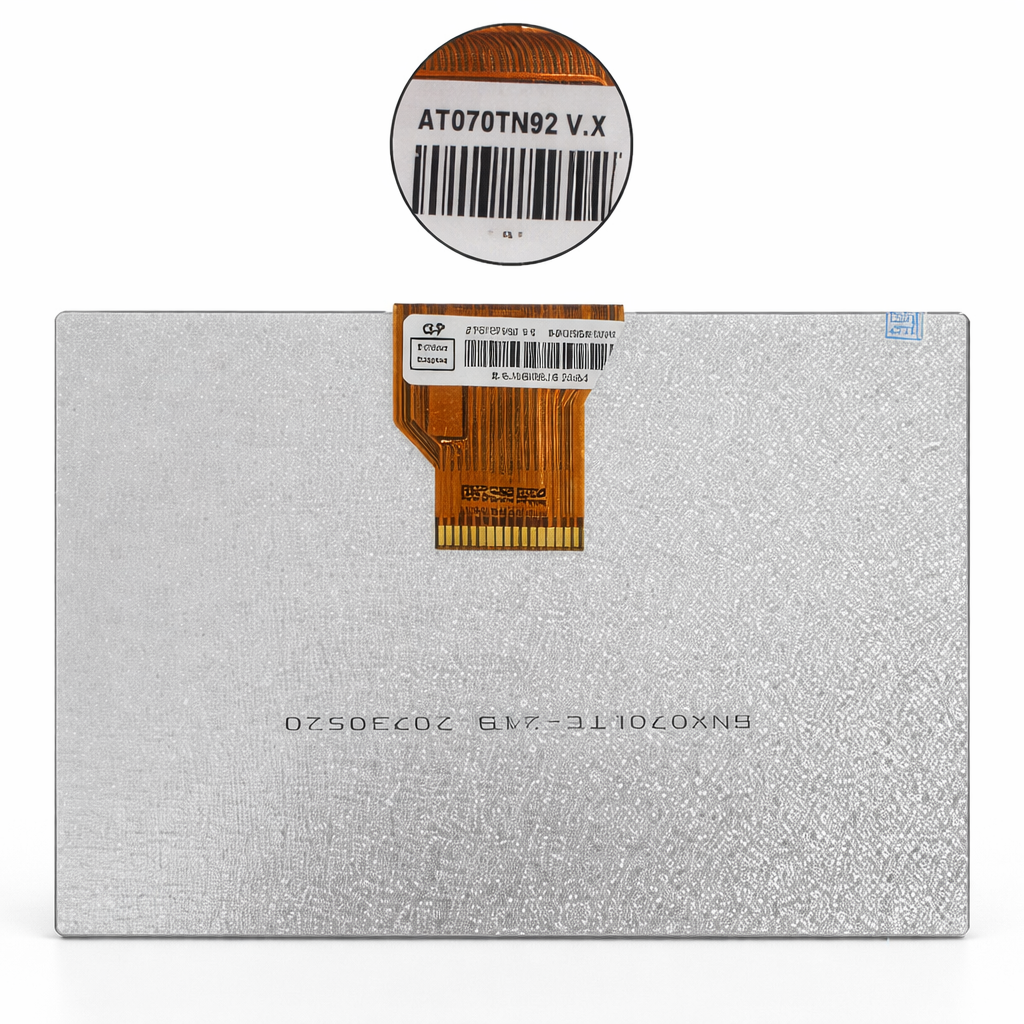

INNOLUX AT070TN92-V.X

The Innolux AT070TN92-V.X is a 7-inch a-Si TFT-LCD module designed for embedded and consumer electronic applications. It features a resolution of 800 × 480 pixels with a 16:9 aspect ratio, providing clear and wide-format visual output suitable for graphical user interfaces. The panel uses TN (Twisted Nematic) technology in a normally white, transmissive mode, delivering a typical contrast ratio of around 500:1 and supporting up to 16.7 million colors for decent color reproduction.

This display operates through a parallel RGB (TTL) interface with a 50-pin FPC connector, making it easy to integrate with microcontrollers and embedded systems. It typically runs on multiple voltage levels (including 3.3V logic), ensuring compatibility with standard display driver circuits. The module has compact mechanical dimensions of approximately 162.5 × 96.6 mm and an active display area of about 154.08 × 85.92 mm, making it suitable for space-constrained designs.

The panel is designed to function reliably in a wide temperature range from –20°C to +70°C, with storage support down to –30°C, making it ideal for industrial and outdoor environments. It features an anti-glare surface and supports landscape orientation with flexible viewing options (70/70/50/70 viewing angles). Due to its durability and performance, it is widely used in applications such as portable DVD players, digital photo frames, GPS devices, industrial control systems, and handheld equipment.
