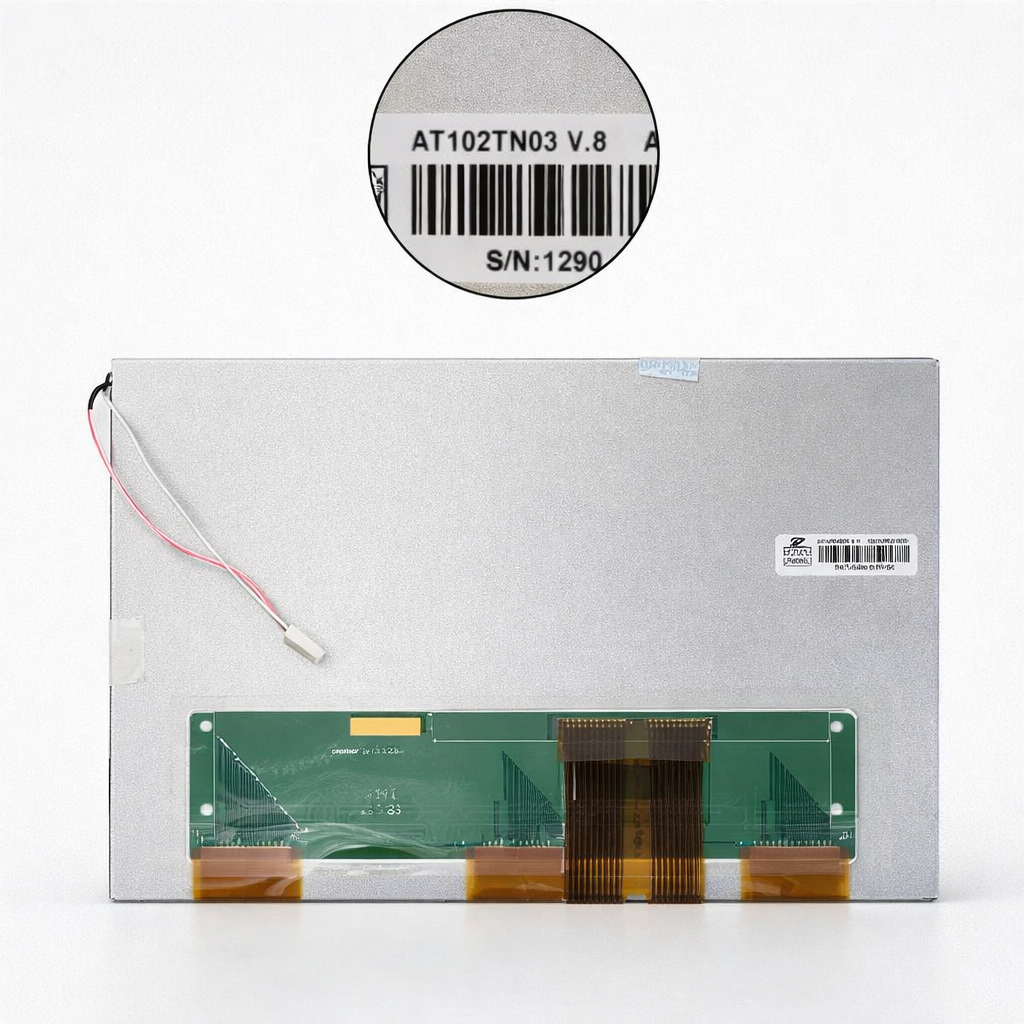

INNOLUX AT102TN03-V.8

The Innolux AT102TN03-V.8 is a 10.2-inch a-Si TFT-LCD module designed for industrial, automotive, and embedded display systems. It features a resolution of 800 × 480 pixels with a 16:9 aspect ratio, delivering clear and stable visuals for graphical interfaces and multimedia display. The panel operates in TN (Twisted Nematic), normally white, transmissive mode, supporting 262K to 16.2 million colors (6-bit with dithering) for consistent image quality.

In terms of optical performance, the display provides a typical brightness of around 350 cd/m² and a contrast ratio of approximately 300:1, with viewing angles of about 65/65/45/65 (left/right/up/down). It also includes an anti-glare surface, improving readability in bright environments.

The module uses a parallel RGB (TTL) interface (30–60 pin FPC) and operates at a typical voltage of 3.3V, making it easy to integrate with embedded controllers and microprocessor-based systems. It features a white LED (WLED) backlight with a lifespan of around 20,000 hours, ensuring long-term reliability and energy efficiency.

Mechanically, the display has dimensions of approximately 235 × 145.8 × ~6 mm, with an active display area of about 222 × 132.48 mm. It supports wide temperature operation from –30°C to +85°C, making it ideal for harsh industrial environments.
