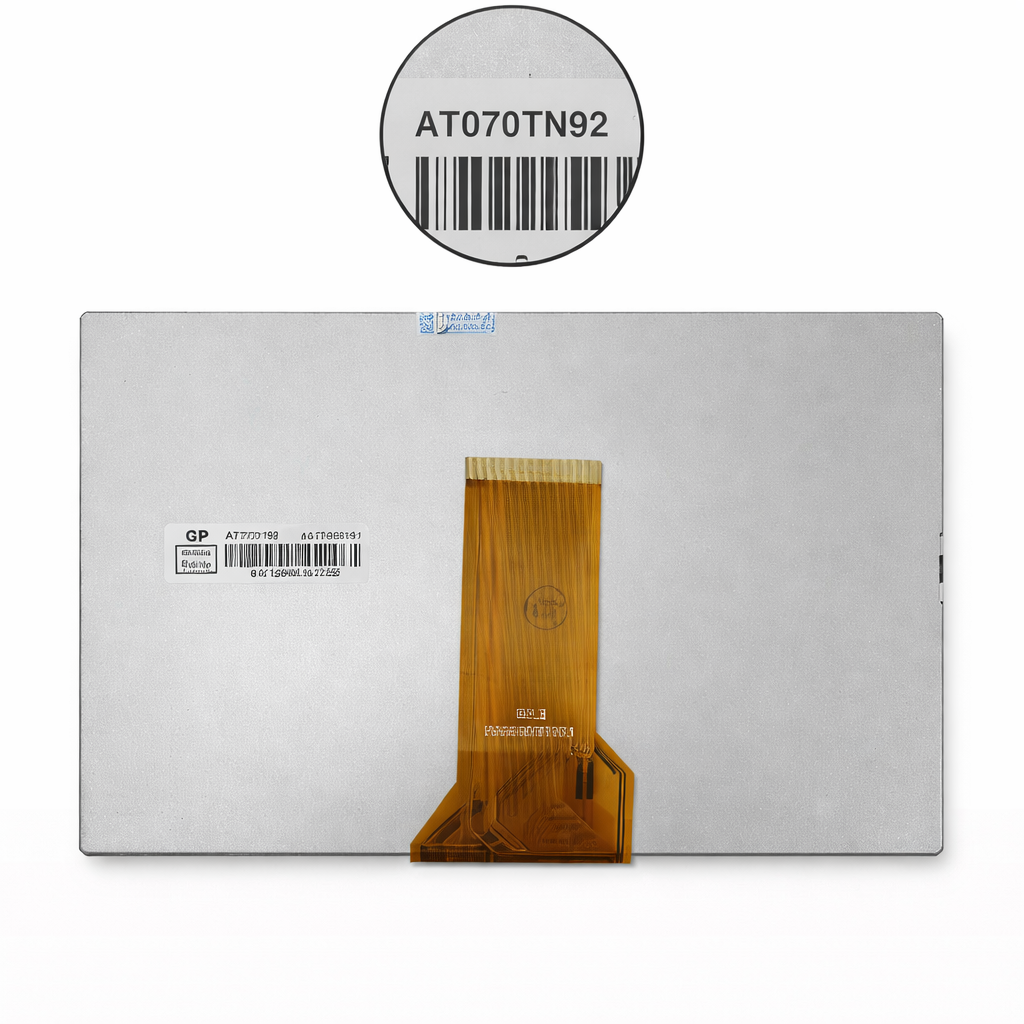

INNOLUX AT070TN92-V.1
₹4,000.00
The INNOLUX AT070TN92-V.1 is a 7-inch TFT LCD display module with 800×480 (WVGA) resolution, LED backlight, and RGB interface, designed for reliable performance in embedded and industrial applications.
The INNOLUX AT070TN92-V.1 is a 7.0-inch a-Si TFT-LCD panel widely used in industrial, consumer electronics, and embedded display systems. It offers a WVGA resolution of 800 × 480 pixels, delivering clear visuals and stable image performance for control interfaces, multimedia devices, and smart display solutions.
This panel operates in TN (Twisted Nematic), normally white, transmissive mode, ensuring fast response times and efficient light transmission. It features a WLED (White LED) backlight system with a typical brightness of around 250 cd/m² and a lifespan of approximately 20,000 hours, making it suitable for long-term usage.
The display supports a Parallel RGB (TTL) interface with a 50-pin FPC connector, allowing easy integration with microcontrollers, embedded boards, and industrial systems. It operates on a 3.3V power supply, ensuring energy-efficient performance.
Physically, the module has compact dimensions of approximately 164.9 × 100 × ~5.7 mm, with an active display area of 154.08 × 85.92 mm, providing a good balance between size and usability.
With a wide operating temperature range of -20°C to 70°C and storage range up to -30°C to 80°C, this LCD is suitable for harsh industrial environments and outdoor applications.
Additional features include anti-glare surface treatment, wide aspect ratio (16:9), and display flipping support (U/D, L/R), enhancing flexibility for different mounting orientations.
