LG.PHILIPS LB104V03-A1

The LG.Philips LB104V03-A1 is a 10.4-inch a-Si TFT-LCD display module designed primarily for industrial and embedded applications. It features a VGA resolution of 640 × 480 pixels with a 4:3 aspect ratio, delivering clear and consistent image quality suitable for control panels and legacy systems. The panel uses TN (Twisted Nematic) technology in a normally white, transmissive mode and supports up to 262K colors (6-bit), ensuring stable and reliable visual output.

In terms of optical performance, the display provides a typical brightness of around 400 cd/m² and a contrast ratio of approximately 300:1. It includes an anti-glare surface with hard coating, which improves visibility under bright lighting conditions and enhances durability. The viewing angles are about 60/60/40/50 (left/right/up/down), making it suitable for front-facing industrial use.

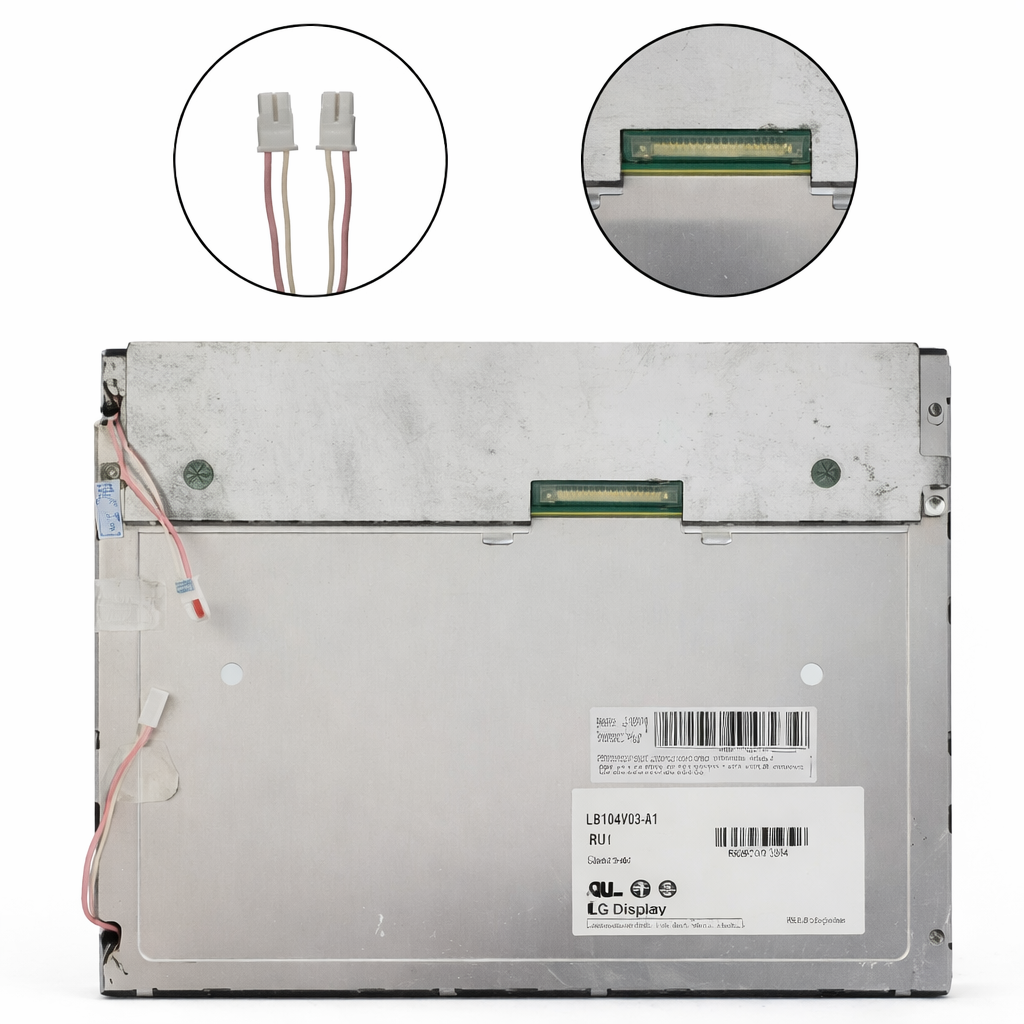

The module uses a parallel RGB (TTL) interface with a 30-pin connector and operates at a typical voltage of 3.3V, allowing easy integration with embedded controllers. It is equipped with a dual CCFL backlight system with a lifespan of around 40,000 hours, ensuring long-term reliability in continuous operation environments.

Mechanically, the panel has dimensions of approximately 236 × 180 × 10 mm with an active display area of about 211.2 × 158.4 mm. It supports landscape orientation and includes mounting options for industrial installation. The operating temperature range is typically 0°C to +50°C (storage: –20°C to +60°C), making it suitable for controlled industrial environments.

Due to its robust build, long backlight life, and reliable performance, this display is commonly used in industrial HMI systems, medical equipment, POS terminals, automation panels, and legacy machinery interfaces where long-term availability and stability are critical.
