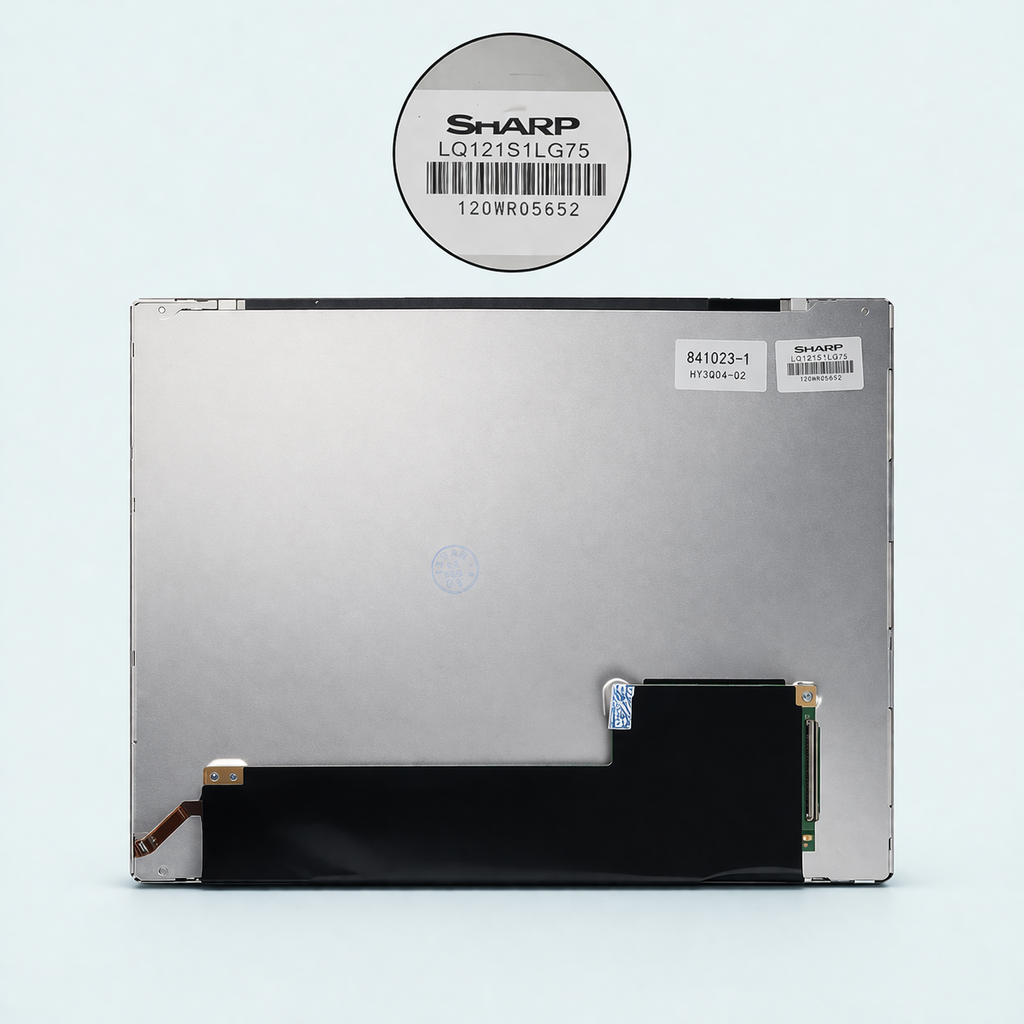

SHARP LQ121S1LG75

The SHARP LQ121S1LG75, manufactured by Sharp Corporation, is a reliable industrial-grade TFT LCD panel designed for long-term use in embedded and industrial environments. It comes with a 12.1-inch display size and 800×600 (SVGA) resolution, providing clear, stable, and readable visuals for graphical user interfaces, monitoring dashboards, and control applications.

This display uses a 4:3 aspect ratio, which is commonly used in legacy industrial equipment, making it highly suitable for replacement or maintenance of existing systems. It supports 16.2 million colors (6-bit + FRC), ensuring decent color reproduction for UI elements and industrial visualization.

The panel is built using TFT (Thin Film Transistor) transmissive technology, delivering stable image quality and consistent performance. It typically features a White LED (WLED) backlight with an integrated LED driver, providing uniform brightness and improved energy efficiency compared to older CCFL-based panels.

For connectivity, the module uses a LVDS interface (1-channel, 8-bit), which ensures reliable high-speed signal transmission with minimal noise interference. This makes it compatible with a wide range of industrial controllers, embedded systems, and display driver boards.

Mechanically, the display has a robust and compact design with an approximate outline dimension of 265 × 205 mm and an active display area of 246 × 184.5 mm. It is designed for panel mounting in industrial equipment and supports long operational life with a backlight lifespan of 50,000+ hours.

The module is engineered to operate reliably across a wide temperature range (typically -10°C to +75°C, with variations depending on conditions), making it suitable for harsh industrial environments.
