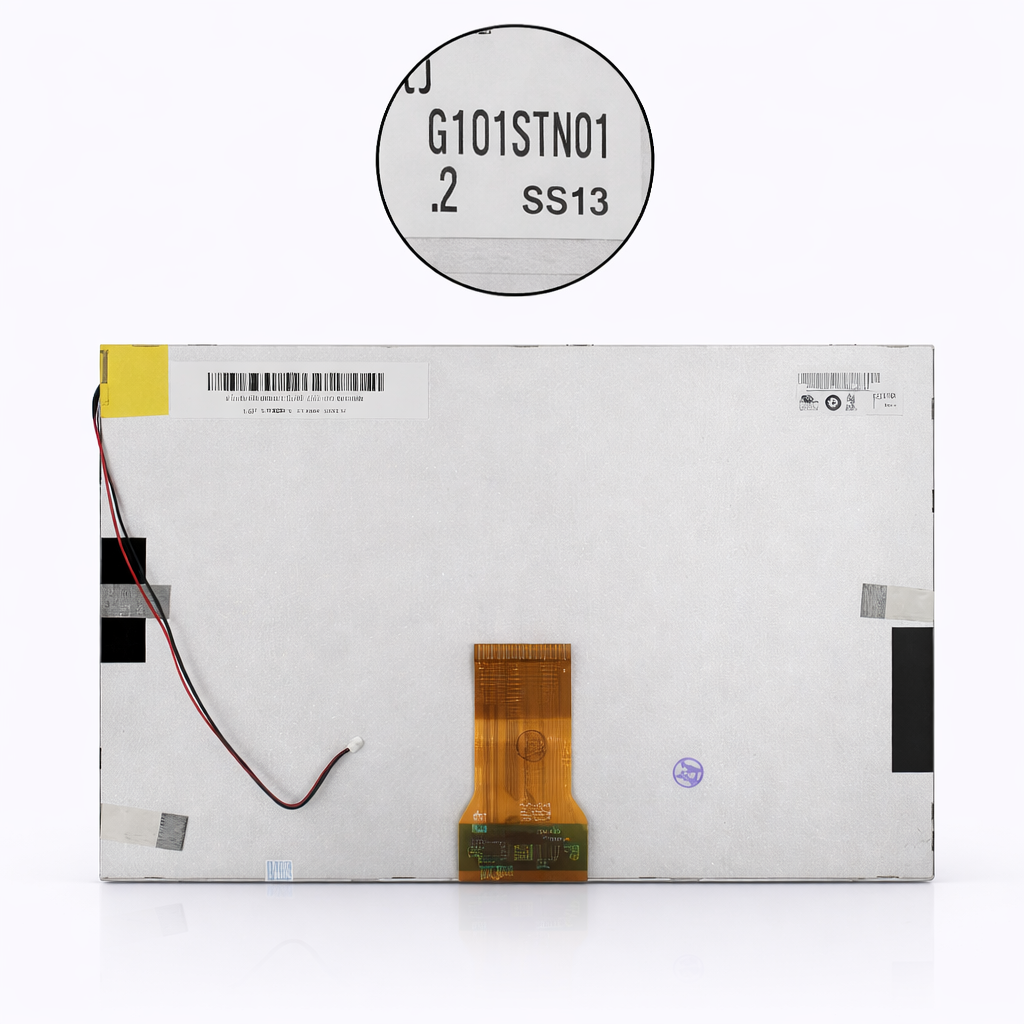

AUO G101STN01.2

The AUO G101STN01.2, manufactured by AU Optronics, is a reliable industrial-grade TFT LCD panel designed for embedded and control applications requiring stable performance and long service life. It comes with a 10.1-inch diagonal size and a resolution of 1024×600 pixels, providing clear and wide-format visuals for user interfaces, dashboards, and monitoring systems.

This display uses a 16:9 aspect ratio, which is well-suited for modern embedded systems and graphical interfaces. It supports 262K / 16.7M colors (6-bit / 8-bit with FRC), ensuring adequate color reproduction for industrial UI elements and visualization tasks.

The panel is based on TN (Twisted Nematic) transmissive technology, offering stable operation and fast response times. It typically provides a brightness of around 350 cd/m² with a contrast ratio of about 500:1, making it suitable for indoor and controlled lighting environments.

For backlighting, the module uses a White LED (WLED) edge-lit system with a long lifespan (around 50,000 hours), ensuring consistent brightness and energy efficiency compared to older CCFL-based displays.

The display supports a LVDS (Low Voltage Differential Signaling) interface with a 50-pin connector, allowing easy integration with industrial controllers, embedded boards, and display driver systems. It typically operates on a 3.3V input, making it compatible with standard industrial electronics.

Mechanically, the module has a compact and rugged design with an approximate active area of 222.72 × 125.28 mm and an overall slim profile. It is built for durability, supporting an operating temperature range of -10°C to +60°C, which makes it suitable for a wide range of industrial environments.
