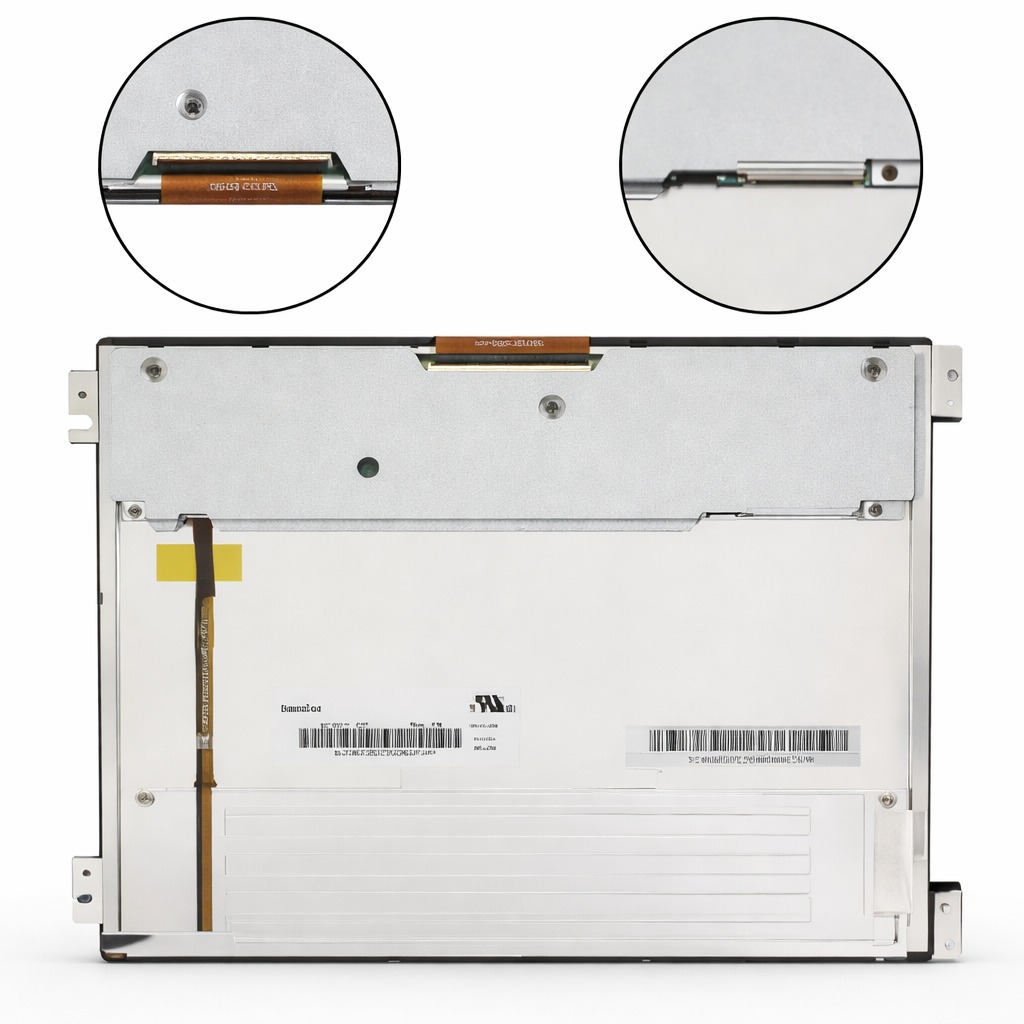

The Innolux G104S1-L01 is a 10.4-inch a-Si TFT-LCD module designed for industrial-grade performance and reliability. It features a resolution of 800 × 600 pixels (SVGA) with a 4:3 aspect ratio, providing clear and stable image quality suitable for control panels, industrial PCs, and embedded systems. The display operates in normally white, transmissive mode with RGB vertical stripe configuration and supports 262K to 16.2 million colors, ensuring consistent visual output.
In terms of optical performance, the panel delivers a typical brightness of around 400 cd/m² and a contrast ratio of approximately 700:1, offering good visibility in indoor and semi-bright environments. It provides wide viewing angles of about 80/80/70/70 (L/R/U/D) and fast response time, making it suitable for real-time display applications.
The module uses a 1-channel LVDS interface (20-pin connector) and operates at a typical voltage of 3.3V, allowing stable, low-noise data transmission and easy integration with modern embedded systems. It includes a white LED (WLED) backlight with built-in driver, offering a lifespan of around 30,000 hours, ensuring long-term reliability and energy efficiency.
Mechanically, the display has dimensions of approximately 243 × 184 × 7.3 mm, with an active display area of 211.2 × 158.4 mm. It features an anti-glare (matte) surface with hard coating, improving durability and readability. The panel supports a wide operating temperature range of –20°C to +70°C (storage: –40°C to +80°C), making it suitable for harsh industrial environments.
Due to its rugged design, high brightness, and stable performance, the Innolux G104S1-L01 is commonly used in industrial automation systems, medical equipment, POS terminals, transportation displays, and embedded HMI interfaces, where reliability and long-term operation are essential.
