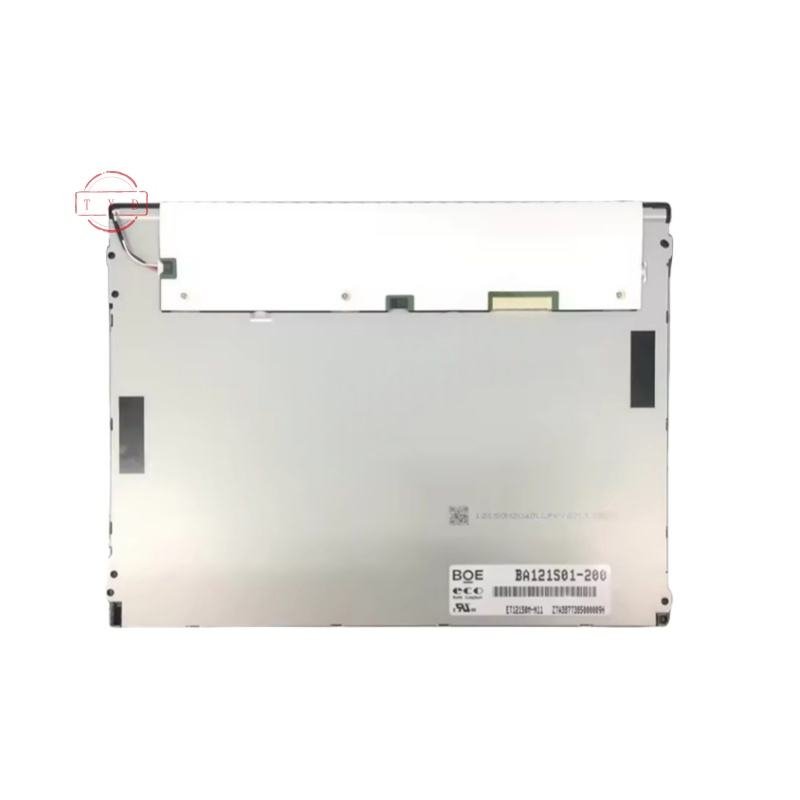

BOE BA121S01-200

BOE BA121S01-200 is a high-performance 12.1-inch color a-Si TFT-LCD module manufactured by BOE for advanced industrial visualization and professional machine interface applications. This premium industrial LCD panel features 800 × 600 SVGA pixel resolution with RGB vertical stripe architecture, delivering crisp text readability, stable graphics rendering, and accurate color presentation for machine operator systems and industrial monitor assemblies. The module supports 262K / 16.7 million display colors with selectable 6-bit and 8-bit LVDS signal input, while its TN Normally White transmissive technology ensures bright, responsive, and dependable screen performance during continuous-duty operation.

One of the major highlights of BOE BA121S01-200 is its industrial-grade optical quality. The display offers approximately 400 cd/m² brightness with a strong 800:1 contrast ratio and AG25 anti-glare surface treatment, allowing excellent readability in bright factory floors, machine rooms, and medical diagnostic environments. It is equipped with a built-in white LED backlight system and integrated LED driver architecture that provides uniform illumination, low power consumption, and a long service life ranging from 30,000 to 50,000 hours depending on operating conditions.

This industrial TFT module has a large active viewing area of 246 × 184.5 mm packed inside a slim rugged body measuring approximately 279 × 209 × 9 mm, making it ideal for OEM industrial monitor assemblies and replacement display integration. BOE BA121S01-200 uses a 20-pin 1-channel LVDS digital interface with 3.3V logic supply and dedicated LED backlight connector, enabling stable high-speed communication with industrial motherboards, PLC systems, embedded processors, and professional HMI control boards. BOE’s own product specification also lists this module specifically for medical monitor class applications, highlighting its dependable image consistency and robust module construction.
