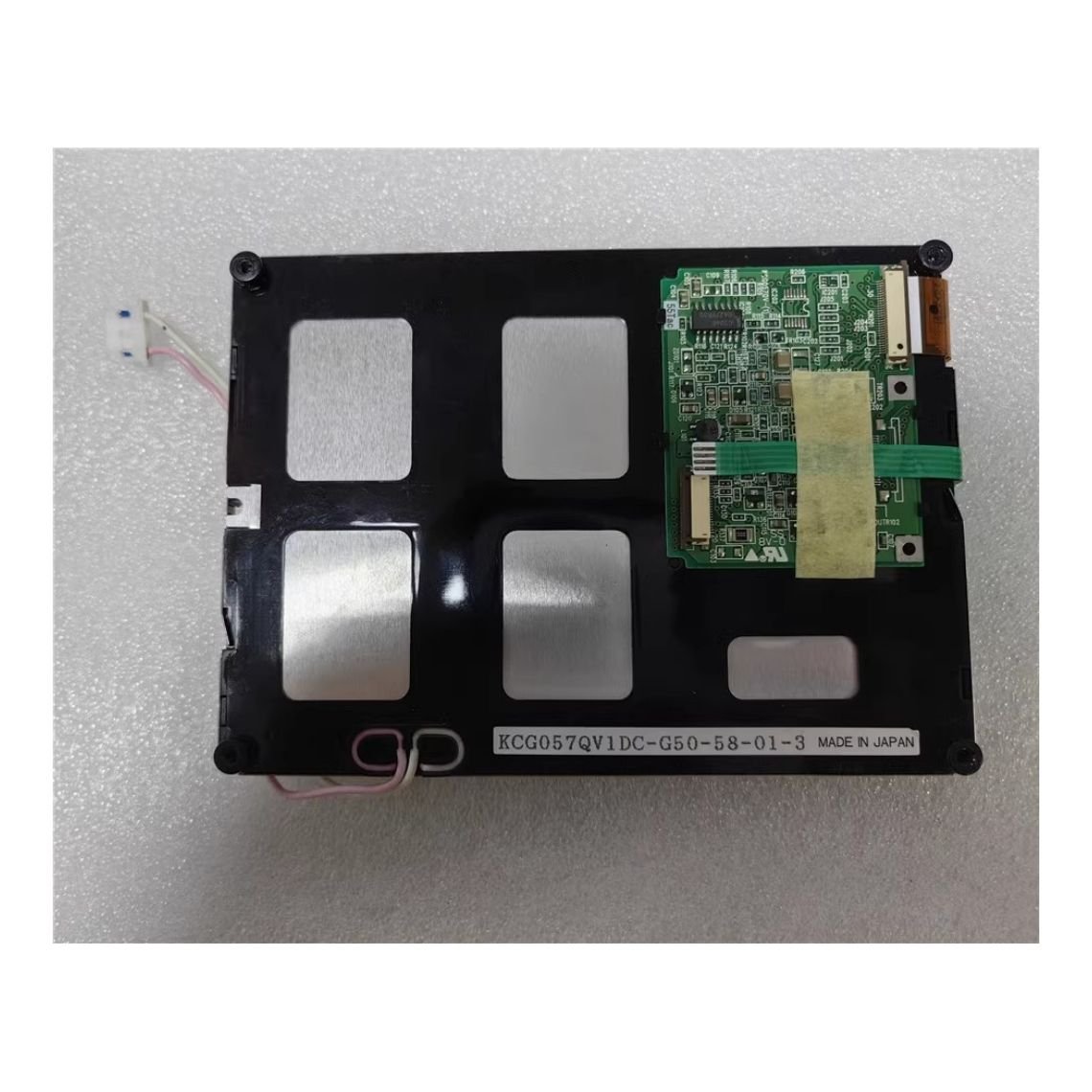

KYOCERA KCG057QV1DC-G50

The Kyocera KCG057QV1DC-G50 is a rugged 5.7-inch CSTN-LCD module developed for industrial and professional applications where dependable display quality and touchscreen functionality are required. It provides a 320(RGB) × 240 QVGA resolution with a 4:3 aspect ratio and an active display area of 115.18 × 86.38 mm, making it suitable for industrial HMIs, medical instruments, CNC machines, factory automation systems, and embedded equipment.

The display uses STN, Normally Black, Transmissive technology with RGB vertical stripe pixel arrangement and supports full-color output. It delivers a typical brightness of 280 cd/m² with a 55:1 contrast ratio, offering reliable readability for industrial text, graphics, and control interfaces. The module also features viewing angles of 50/50/20/35 degrees and includes an antiglare hard-coated surface to reduce reflections and improve usability in industrial environments.

A major feature of the KCG057QV1DC-G50 is its embedded 4-wire resistive touchscreen, which allows direct operator interaction without the need for an external touch overlay. The touchscreen makes the display ideal for machine control panels, industrial operator terminals, and interactive embedded devices.

The module includes a single CCFL edge-lit backlight system with a U-shaped lamp and an expected life of approximately 75,000 hours. It uses a 20-pin 8-bit parallel data interface and supports both 3.3V and 5.0V input voltage for easier integration into a wide range of industrial systems.

Built for demanding environments, the module supports operating temperatures from 0°C to 60°C and storage temperatures from -20°C to 60°C. Its rugged construction, rear mounting holes, and touchscreen integration make it suitable for long-term industrial use and replacement applications.

Key Features:

• 5.7-inch industrial CSTN LCD display
• 320 × 240 QVGA resolution
• STN, Normally Black, Transmissive display mode
• Full-color display support
• 280 cd/m² brightness
• 55:1 contrast ratio
• Integrated 4-wire resistive touchscreen
• Antiglare hard-coated surface
• Single CCFL backlight with 75,000-hour life
• 20-pin 8-bit parallel data interface
• 3.3V / 5.0V operating voltage
• Active area: 115.18 × 86.38 mm
• Module size: 144 × 104.8 × 15.3 mm
• Operating temperature: 0°C to 60°C
• Suitable for industrial HMIs, CNC machines, medical devices, automation systems, and embedded control panels
