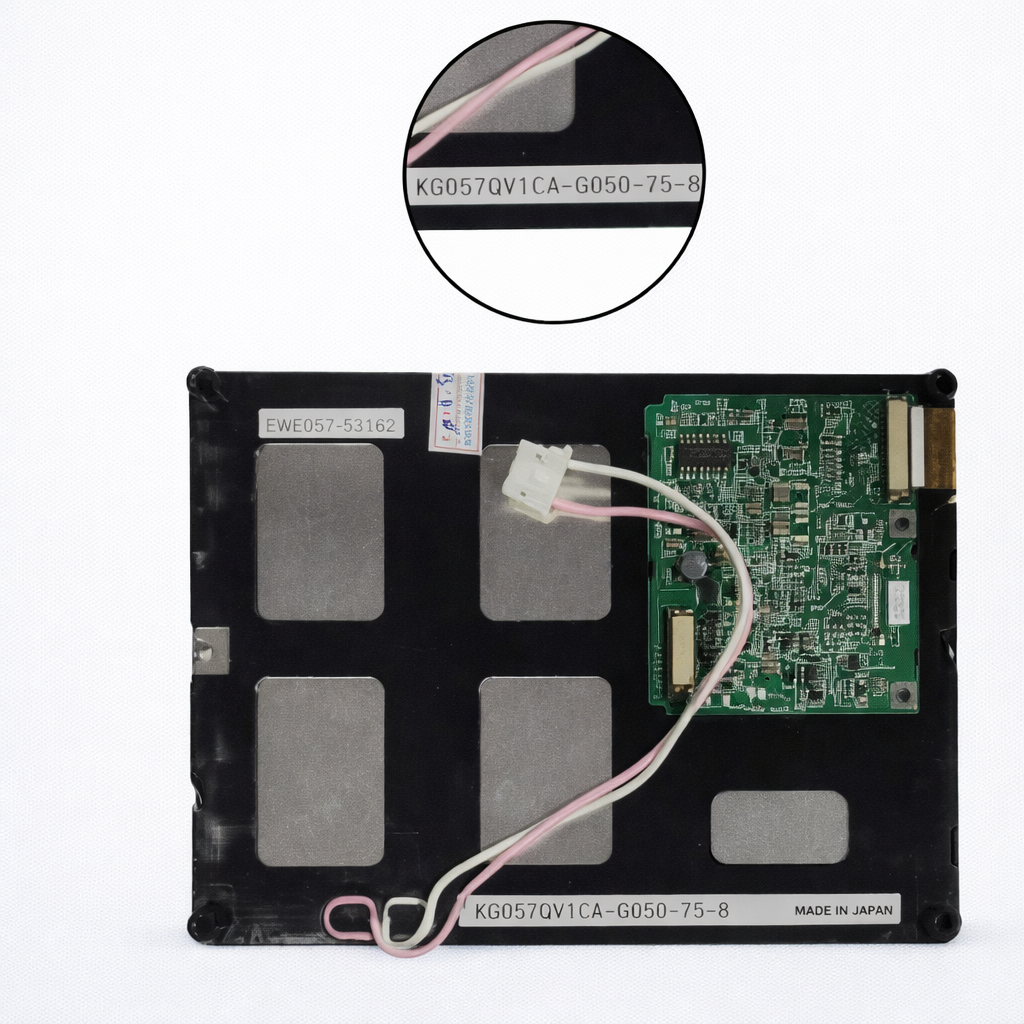

KYOCERA KG057QV1CA-G00
₹11,500.00
The KYOCERA KG057QV1CA-G00 is a 5.7-inch industrial-grade monochrome LCD module with a resolution of 320×240 (QVGA). It is designed for reliable performance in embedded and industrial applications such as control panels, HMIs, automation equipment, and measurement systems.
The KYOCERA KG057QV1CA-G00 is a robust and widely used STN (Super Twisted Nematic) LCD module built for industrial and commercial electronic devices. It features a 5.7-inch display size with a 320×240 pixel resolution, providing clear and stable monochrome visuals suitable for text-based interfaces and graphical data display.
This display uses a transmissive monochrome (black/white) mode with a CCFL backlight, ensuring consistent visibility even in low-light conditions. The panel supports a typical brightness of around 220 cd/m² and a contrast ratio of approximately 10:1, making it suitable for controlled viewing environments.
The module is engineered with a 4-bit parallel data interface and operates on 3.3V or 5V logic, making it compatible with a wide range of embedded systems and microcontrollers. It includes a 20-pin connector interface for easy integration into industrial hardware.
Mechanically, the display has a compact and durable rectangular form factor with approximate dimensions of 144 × 104.8 × 12.7 mm, and an active display area of about 115 × 86 mm. Its operating temperature range of 0°C to 60°C and storage range of -20°C to 60°C make it suitable for demanding environments.
