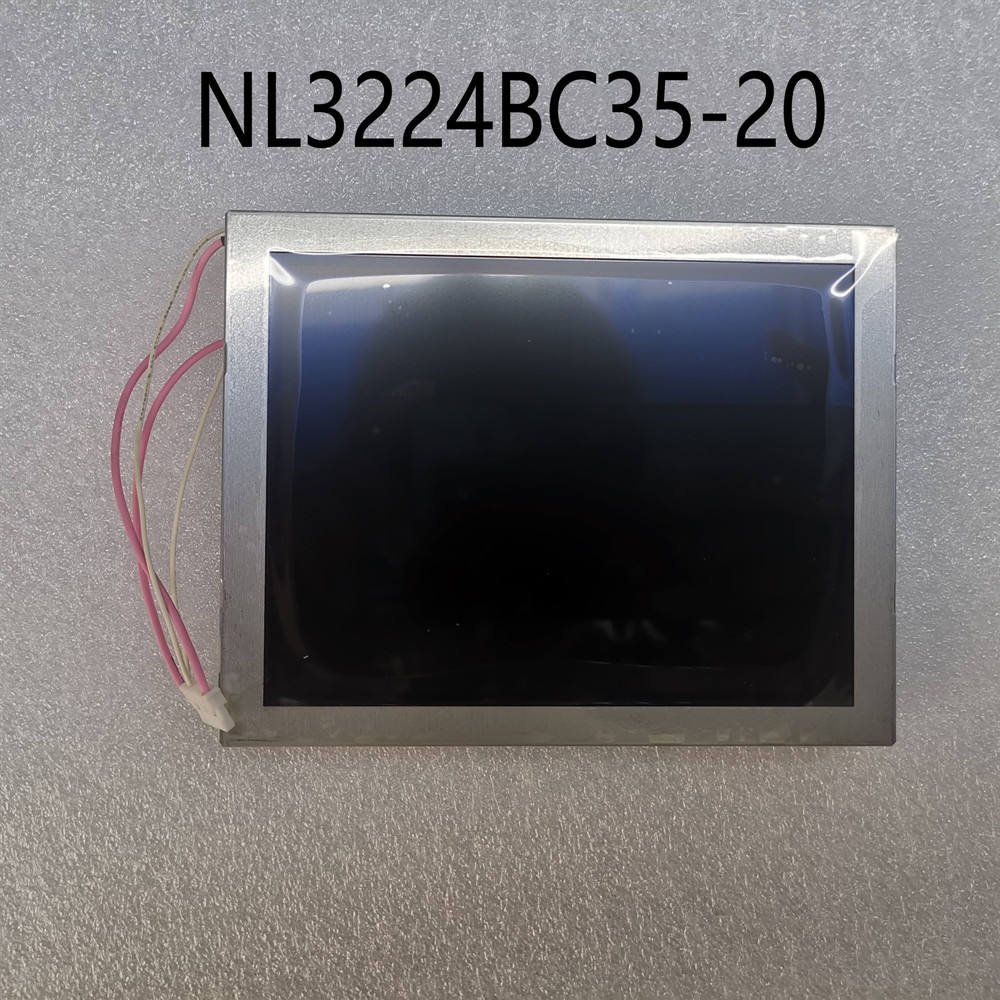

NEC NL3224BC35-20R
₹16,500.00
The NEC NL3224BC35-20R is a 5.5-inch industrial TFT-LCD display module designed for industrial control systems, medical equipment, POS terminals, and embedded devices. It features a 320 × 240 QVGA resolution, dual CCFL backlight, Parallel RGB CMOS interface, and wide operating temperature support for reliable long-term use.
The NEC NL3224BC35-20R is a premium 5.5-inch a-Si TFT-LCD module developed for industrial and commercial applications where dependable image quality and rugged construction are essential. It provides a QVGA resolution of 320(RGB) × 240 pixels with a 4:3 aspect ratio and a pixel density of 72 PPI, making it suitable for industrial PCs, POS systems, medical instruments, machine controls, and compact monitoring devices. The active display area measures 111.36 × 83.52 mm within an overall module size of 134 × 104.5 × 12.5 mm.
The display uses TN, Normally White, Transmissive technology and supports up to 262K colors through a 6-bit RGB vertical stripe configuration. It delivers a typical brightness of 400 cd/m² with a contrast ratio of 400:1, ensuring clear visibility in industrial environments. Viewing angles are approximately 55° left/right, 50° up, and 40° down, while the low-reflection surface helps improve readability under different lighting conditions.
The NL3224BC35-20R includes a dual CCFL backlight system with top and bottom edge lighting and replaceable lamp support for easier maintenance. Many industrial users also upgrade the original CCFL lamps to LED kits for longer life and improved efficiency. The module uses a Parallel RGB CMOS interface with 1-channel 6-bit support and operates on either 3.3V or 5.0V input voltage, providing flexibility for integration into different systems.
Designed for demanding environments, the display supports an operating temperature range of -10°C to 70°C and storage temperatures from -30°C to 80°C. It also includes reverse scan support for both U/D and L/R orientations, making it easier to integrate into various industrial display layouts.
Key Features:
- 5.5-inch industrial TFT-LCD display
- 320 × 240 QVGA resolution
- TN, Normally White, Transmissive display mode
- 262K color support
- 400 cd/m² brightness
- 400:1 contrast ratio
- Dual CCFL backlight with replaceable lamp support
- Parallel RGB CMOS interface
- 3.3V / 5.0V operating voltage
- Reverse scan support (U/D, L/R)
- Active area: 111.36 × 83.52 mm
- Module size: 134 × 104.5 × 12.5 mm
- Operating temperature: -10°C to 70°C
- Suitable for industrial PCs, POS terminals, medical devices, machine controls, and embedded systems
