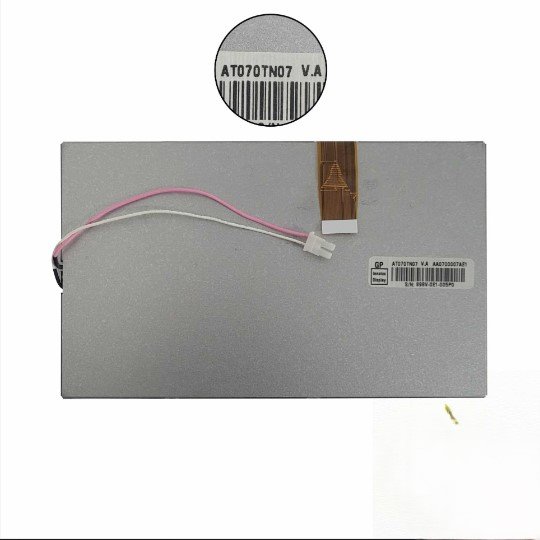

INNOLUX AT070TN07-V.A

The Innolux AT070TN07-V.A is a compact 7-inch a-Si TFT-LCD module developed for applications requiring reliable display quality in a lightweight and space-saving design. It provides a resolution of 480 × 234 pixels with a 16:9 wide-screen aspect ratio, making it suitable for video door phones, portable DVD players, digital photo frames, vehicle displays, and industrial embedded systems. The active display area measures 154.08 × 86.58 mm within an overall module size of 164.9 × 100 × 5.7 mm.

The display uses TN, Normally White, Transmissive technology with RGB vertical stripe pixel arrangement to deliver full-color image output. It offers a typical brightness of 200 cd/m² and a contrast ratio of 300:1, ensuring clear visibility for indoor and semi-outdoor applications. The panel also features an anti-glare surface treatment that helps reduce reflections and improve readability. Viewing angles of 60/60/40/60 degrees provide stable visibility from multiple directions.

The AT070TN07-V.A includes a white LED backlight system with a minimum life expectancy of 20,000 hours. It uses a 26-pin analog RGB interface and supports reverse scan functions for both up/down and left/right orientation flexibility. The module operates across a wide temperature range of -30°C to 85°C, making it suitable for demanding industrial environments and vehicle-based installations.

Community discussions also note that AT070TN07-series panels commonly use analog RGB signaling with a 26-pin connector, which can make sourcing compatible controller boards important when using the panel in custom electronics projects or repurposed display systems.

Key Features:

• 7.0-inch TFT-LCD display
• 480 × 234 resolution
• 16:9 wide-screen aspect ratio
• TN, Normally White, Transmissive display mode
• 200 cd/m² brightness
• 300:1 contrast ratio
• Anti-glare surface treatment
• WLED backlight with 20,000-hour life
• 26-pin analog RGB interface
• Supports U/D and L/R reverse scan
• Active area: 154.08 × 86.58 mm
• Module size: 164.9 × 100 × 5.7 mm
• Operating temperature: -30°C to 85°C
• Suitable for digital photo frames, video door phones, portable DVD players, vehicle displays, and industrial embedded systems
