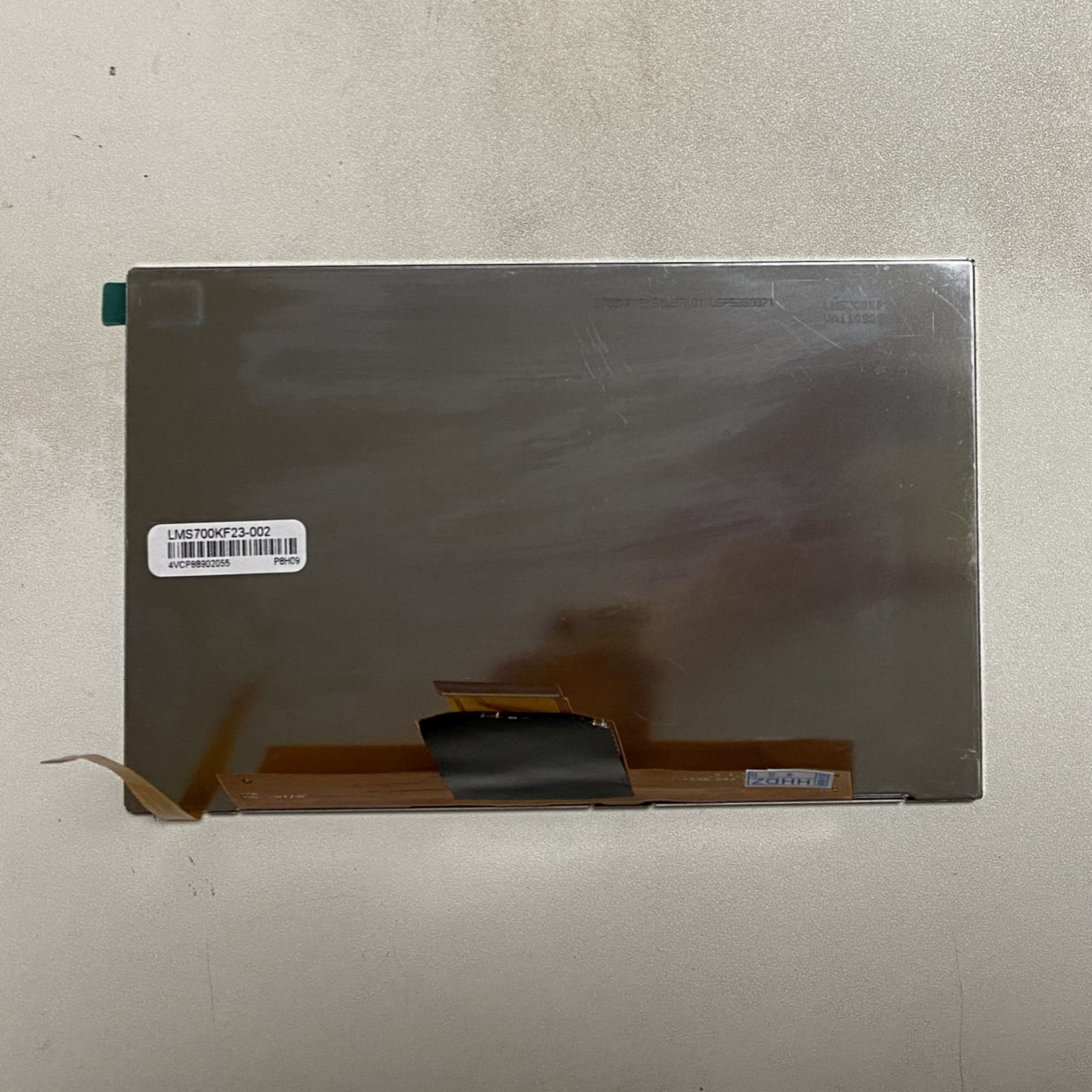

SAMSUNG LMS700KF23-002

SAMSUNG LMS700KF23-002 is a high-performance 7.0-inch a-Si TFT-LCD display module manufactured by Samsung Mobile Display for advanced industrial and commercial embedded display applications. This LCD module features an 800 × 480 WVGA resolution with RGB vertical stripe pixel configuration, delivering sharp text readability, clear graphical images, and smooth color reproduction. The display supports 16.2 million colors, making it suitable for sophisticated machine interfaces, diagnostic monitors, automotive systems, and multimedia control devices where image precision is essential.

Built with TN normally white transmissive technology, the LMS700KF23-002 provides approximately 350 cd/m² brightness and a strong 700:1 contrast ratio, ensuring excellent visibility under bright ambient conditions. Its white LED backlight system offers uniform illumination, lower power consumption, and longer service life compared to conventional CCFL panels. The panel also supports a 60Hz refresh rate and 16ms response time, allowing smooth screen transitions and stable visual performance during continuous machine operation.

This Samsung display module has an active viewing area of 152.4 × 91.44 mm with slim mechanical dimensions of approximately 163.2 × 104 × 3.4 mm, making it highly suitable for compact OEM assemblies and replacement monitor applications. It uses a 40-pin Parallel RGB interface with 3.3V input voltage, enabling fast signal transmission and easy integration into industrial control boards, HMI systems, car entertainment displays, and embedded processor units. Samsung’s official panel documentation also highlights LED backlight architecture with 24 LEDs and 24-bit RGB interface support for enhanced display stability.

Engineered for rugged operation, the module supports an industrial working temperature range of -20°C to +60°C and storage tolerance up to -30°C to +70°C. Due to its robust build quality, sunlight-readable brightness, and reliable color consistency, this panel is commonly installed in portable medical devices, machine visualization units, automation terminals, and aftermarket replacement LCD systems. Electronics repair communities frequently note that Samsung custom LCD modules often require exact part-number matching because connector layout and firmware compatibility can differ between visually similar panels, making precise model replacement very important.

SAMSUNG LMS700KF23-002 remains an ideal industrial LCD solution for users seeking a durable, compact, and high-brightness Samsung TFT panel with dependable long-term performance in professional electronic equipment.
