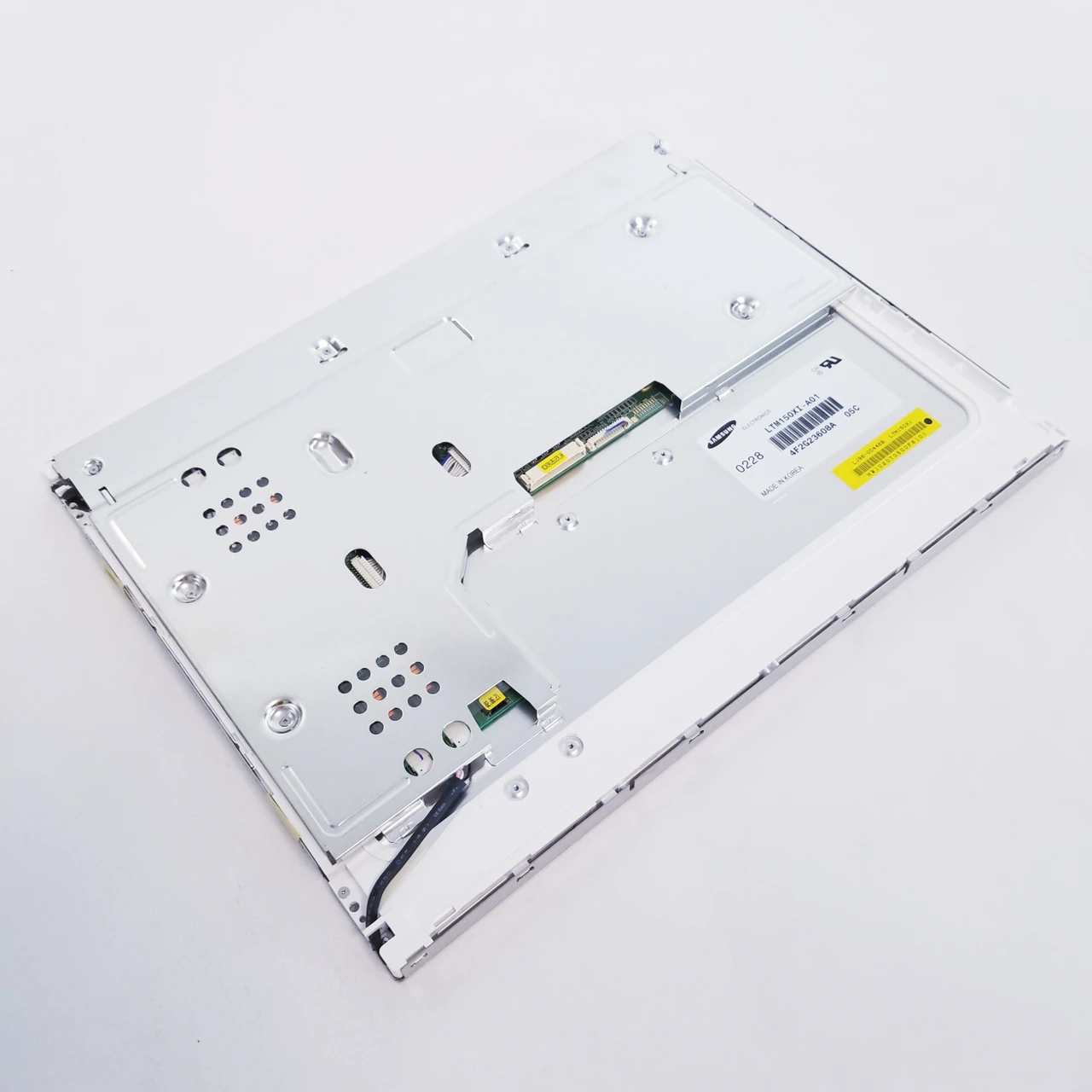

SAMSUNG LTM150XI-A01

SAMSUNG LTM150XI-A01 is a high-performance 15-inch color a-Si TFT-LCD module manufactured by Samsung for advanced industrial visualization and professional embedded machine interface applications. This premium LCD panel features 1024 × 768 XGA pixel resolution with RGB vertical stripe architecture, delivering crisp text readability, detailed graphics rendering, and stable color presentation for industrial operator systems and monitor assemblies. The module supports 16.2 million display colors and is built with TN Normally White transmissive display technology for bright, responsive, and dependable screen performance.

One of the major highlights of SAMSUNG LTM150XI-A01 is its industrial-grade anti-glare optical construction. The display offers approximately 250 cd/m² brightness with a 300:1 contrast ratio, allowing clear readability in indoor machine control environments and continuous operator usage. It uses a 4-lamp CCFL edge-light backlight system with optimized inverter support, delivering uniform illumination and stable long-duration operation. The haze hard-coated screen surface also reduces unwanted reflections during industrial usage.

This industrial TFT module has a large active viewing area of 304.1 × 228.1 mm inside a rugged mechanical body measuring approximately 331.6 × 255.3 × 18 mm, making it highly suitable for industrial monitor replacements and OEM machine display integration. SAMSUNG LTM150XI-A01 uses Analog RGB signal architecture with dedicated 14-pin and 13-pin connector interfaces, integrated LCD signal processing, and 12V power operation for stable communication with industrial motherboards, legacy embedded controllers, and medical diagnostic systems.

Built for dependable field usage, the module supports an operating temperature range of 0°C to +50°C and storage tolerance from -25°C to +60°C. Because this panel belongs to Samsung’s early industrial XGA display family, it remains a preferred exact replacement in older industrial HMIs, monitor assemblies, and diagnostic equipment where redesigning the display controller is not practical. Recent industrial technical reviews specifically note that this model is ideal for upgrading existing industrial or medical systems where recertification barriers make exact panel substitution highly valuable.

Electronics engineers regularly point out that older industrial LCD modules often have custom signal boards and non-standard pin architecture, so exact datasheet matching is essential before replacement. Community discussions note that many display panels are OEM-customized and cannot be treated as casual drop-in substitutes without connector and controller verification.
