SHARP LQ043T3DX02

The Sharp LQ043T3DX02 is a compact 4.3-inch a-Si TFT-LCD panel designed for embedded systems, handheld devices, and multimedia applications. It features a resolution of 480 × 272 pixels with a 16:9 aspect ratio, providing clear and wide-format visuals. The display uses ASV (Advanced Super View) / TN technology in normally black, transmissive mode, supporting up to 16.7 million colors, which ensures good color reproduction and image clarity.

In terms of optical performance, the panel offers a typical brightness of around 165 cd/m² and a contrast ratio of approximately 400:1, along with wide viewing angles of 80/80/80/80 (L/R/U/D). It also has a response time of about 30 ms, making it suitable for basic video and graphical display applications.

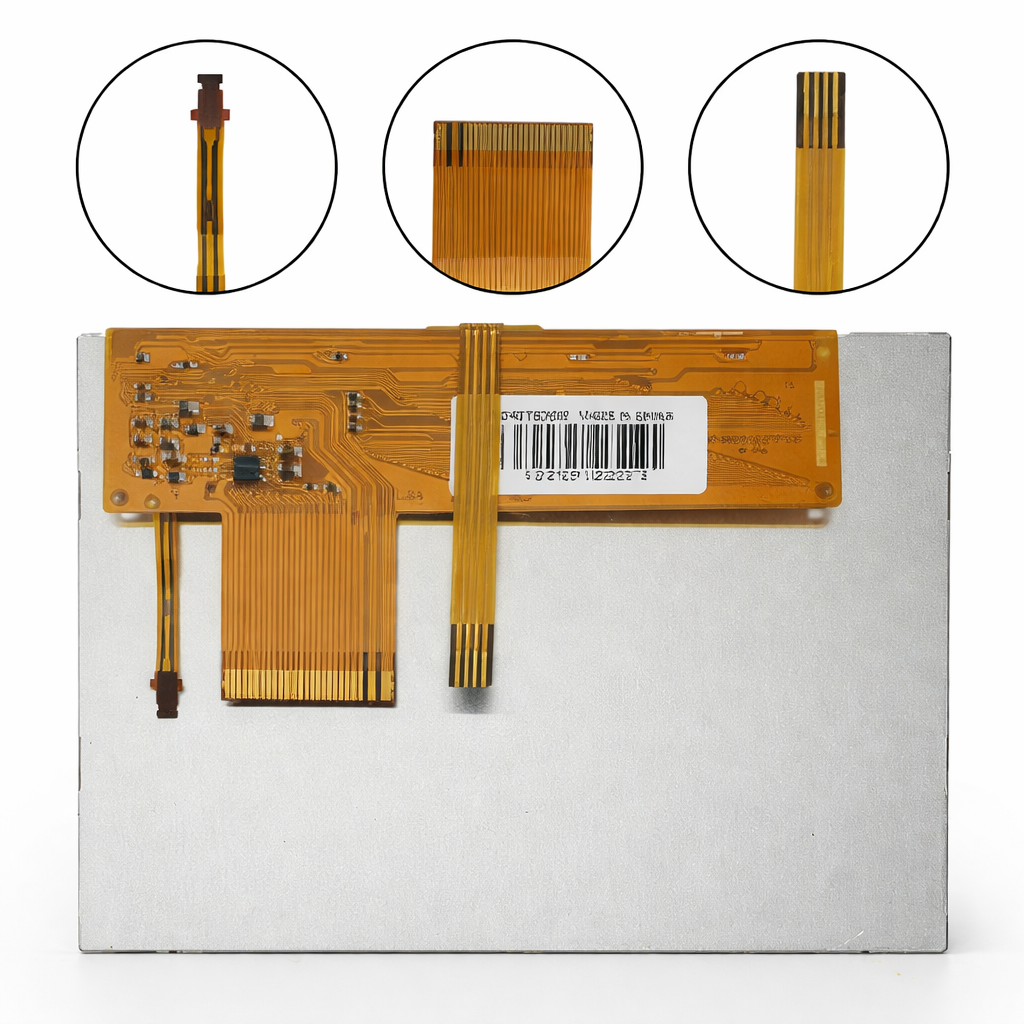

The module uses a parallel RGB (1-channel, 8-bit) interface with a 40-pin FPC connector, allowing easy integration with embedded systems and microcontrollers. It operates with typical voltages of 2.5V–5V for panel driving and includes a white LED (WLED) backlight system, which provides energy efficiency and long operational life.

Mechanically, the display has dimensions of approximately 105.5 × 67.2 × 3.95 mm, with an active display area of 95.04 × 53.856 mm, making it compact and lightweight (~50g). It operates within a temperature range of –10°C to +50°C (storage: –25°C to +60°C), ensuring stable performance in standard industrial environments.
