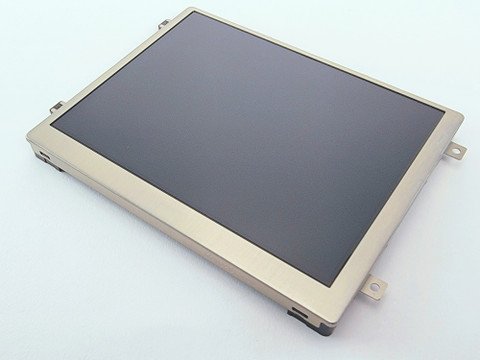

SHARP LQ064V3DG07

The Sharp LQ064V3DG07 is a premium-grade 6.4-inch a-Si TFT-LCD module engineered for industrial and commercial applications where dependable image quality and compact design are essential. It provides a 640(RGB) × 480 VGA resolution with a 4:3 aspect ratio and an active display area of 130.56 × 97.92 mm, making it suitable for industrial control panels, medical instruments, portable analyzers, embedded devices, and test equipment.

The display uses TN, Normally White, Transmissive technology and supports up to 262K colors through a 1-channel 6-bit Parallel RGB interface. It operates at a standard refresh rate of 60Hz, allowing smooth rendering of text, control menus, graphics, and operational data. The compact pixel density of approximately 124 PPI helps deliver sharp image clarity for industrial applications.

The LQ064V3DG07 includes a WLED backlight system with an integrated LED driver, helping provide long service life, stable illumination, and reduced power consumption. Some suppliers also reference CCFL-backlit variants or replacement options, so interface and backlight compatibility should always be verified before replacement. Community discussions often note that older industrial LCD panels require exact controller board compatibility and proper signal matching for successful integration into custom systems.

The module is commonly used in industrial HMIs, CNC systems, machine controls, medical equipment, test instruments, and embedded control systems where compact size and dependable operation are important.

Key Features:

• 6.4-inch industrial TFT-LCD display
• 640 × 480 VGA resolution
• TN, Normally White, Transmissive display mode
• 262K color support
• Approx. 124 PPI pixel density
• WLED backlight with integrated LED driver
• Parallel RGB (1-channel, 6-bit) interface
• 60Hz refresh rate
• Active area: 130.56 × 97.92 mm
• Suitable for industrial HMIs, medical devices, portable instrumentation, CNC systems, and embedded equipment
