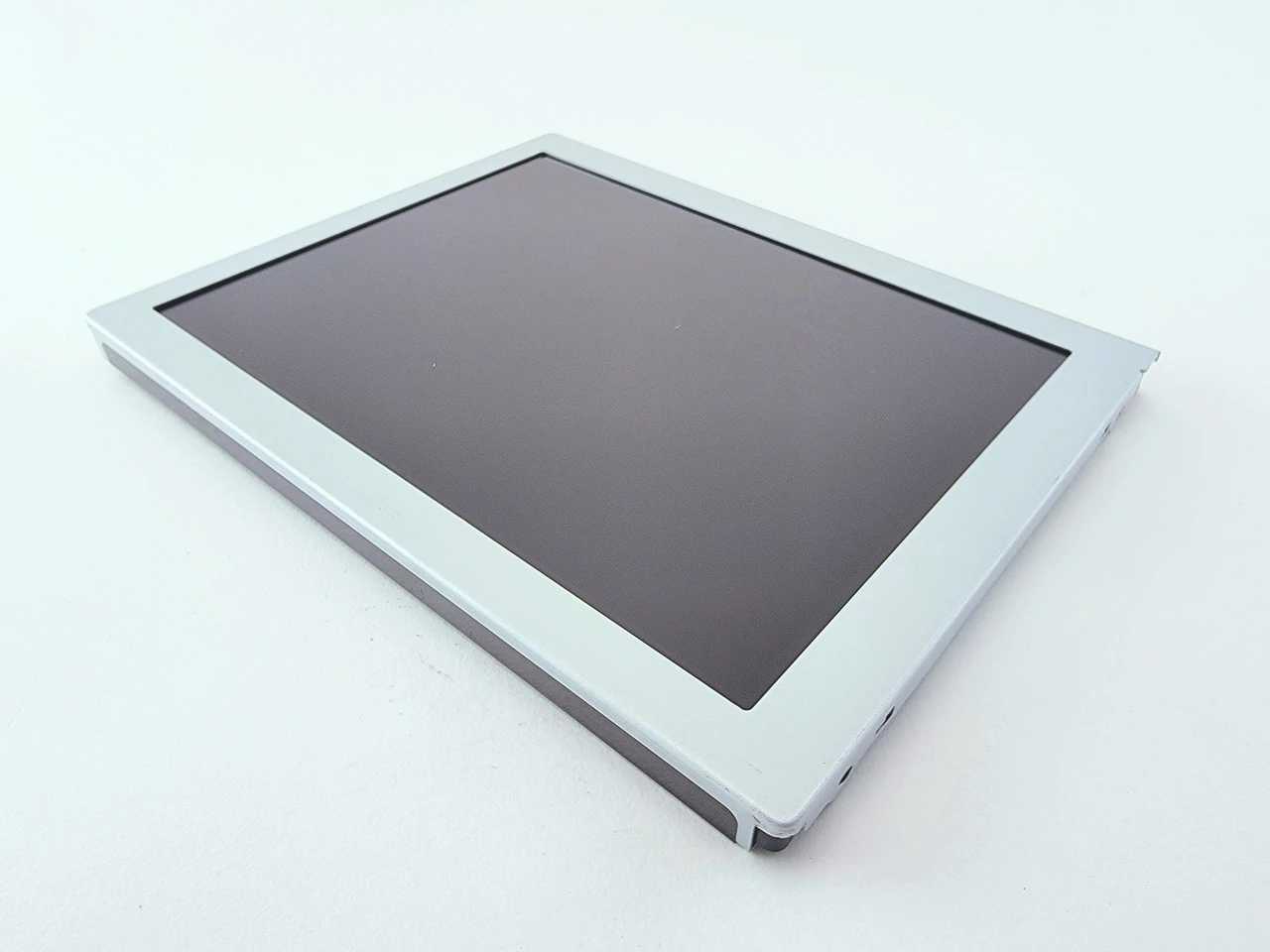

SHARP LQ064X3LW02

SHARP LQ064X3LW02 is a high-performance 6.4-inch color a-Si TFT-LCD module manufactured by Sharp Corporation for advanced industrial visualization and professional machine interface applications. This premium industrial LCD panel features 640 × 480 VGA pixel resolution with RGB vertical stripe architecture, delivering crisp text readability, stable graphics rendering, and accurate color presentation for machine operator systems and industrial monitor assemblies. The module supports 262K display colors and uses TN Normally White transmissive display technology to provide bright, responsive, and dependable screen performance during continuous-duty operation.

One of the major highlights of SHARP LQ064X3LW02 is its industrial-grade optical durability. The display offers approximately 400 cd/m² brightness with anti-glare hard-coated surface treatment and strong contrast performance, allowing reliable readability in factory floors, machine rooms, and embedded control environments. It is equipped with a long-life CCFL backlight system that delivers uniform illumination and stable long-term operation, making it highly suitable for continuous industrial usage and professional equipment.

This industrial TFT module has an active viewing area of approximately 130.56 × 97.92 mm packed inside a compact rugged mechanical body, making it ideal for small OEM industrial monitor assemblies and machine display replacement projects. SHARP LQ064X3LW02 uses a 31-pin CMOS parallel RGB digital interface with industrial logic compatibility, enabling stable communication with PLC systems, CNC display boards, medical controllers, and embedded processor units.

Built for dependable industrial environments, the module supports an operating temperature range of approximately -20°C to +70°C, making it highly suitable for textile machinery, laboratory analyzers, automation systems, process monitoring consoles, and legacy machine visualization units where exact replacement is more practical than redesigning the display hardware.

Industrial repair engineers frequently point out that Sharp’s LQ-series TFT modules require exact model verification because interface timing, inverter voltage, and connector pin architecture can vary significantly even among same-size VGA displays. Therefore exact part-number replacement is strongly recommended in industrial service applications.

Because of its VGA clarity, anti-glare industrial surface, stable CCFL backlight, and Sharp’s trusted embedded display manufacturing quality, SHARP LQ064X3LW02 remains one of the most dependable TFT LCD replacement modules for professional industrial machinery and advanced machine control applications.
