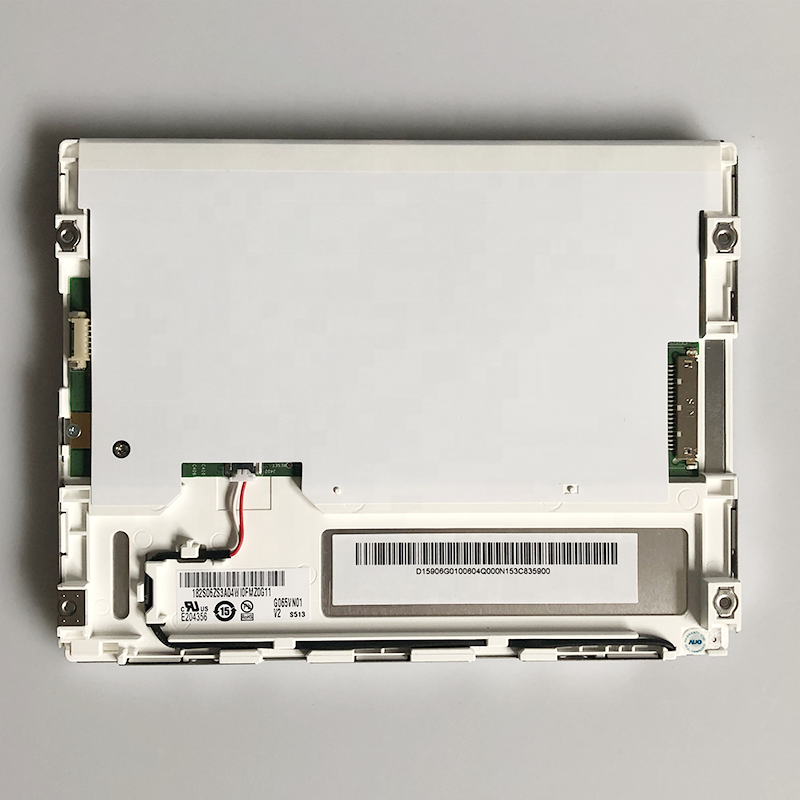

AUO G065VN01-V.2

AUO G065VN01-V.2 is a high-performance 6.5-inch industrial a-Si TFT-LCD module manufactured by AU Optronics for professional machine visualization and embedded display applications. This industrial LCD panel features 640 × 480 VGA resolution with RGB vertical stripe configuration, delivering crisp text readability, stable graphics rendering, and smooth color reproduction for operator control systems and industrial monitoring units. The module supports up to 262K / 16.2M colors and is built using TN Normally White transmissive technology for bright and responsive visual performance.

One of the biggest advantages of AUO G065VN01-V.2 is its extremely high brightness output. The panel provides approximately 800 cd/m² luminance with a strong 600:1 contrast ratio, making it sunlight readable and highly effective in bright factory floors, semi-outdoor machines, and transportation control applications. It is equipped with anti-reflective hard-coated glare surface treatment and a long-life WLED backlight system rated around 50,000 hours, ensuring uniform illumination and dependable long-duration operation.

The module has an active display area of 132.48 × 99.36 mm within a rugged compact mechanical body of approximately 153 × 118 × 10.9 mm, making it ideal for OEM panel integration and industrial monitor replacement. AUO G065VN01-V.2 uses a 20-pin 1-channel LVDS digital interface with 3.3V logic supply and integrated LED driving architecture, allowing stable high-speed communication with industrial motherboards, PLC controllers, CNC display boards, and embedded processor systems. It also supports reverse scan functions for flexible installation orientation.
