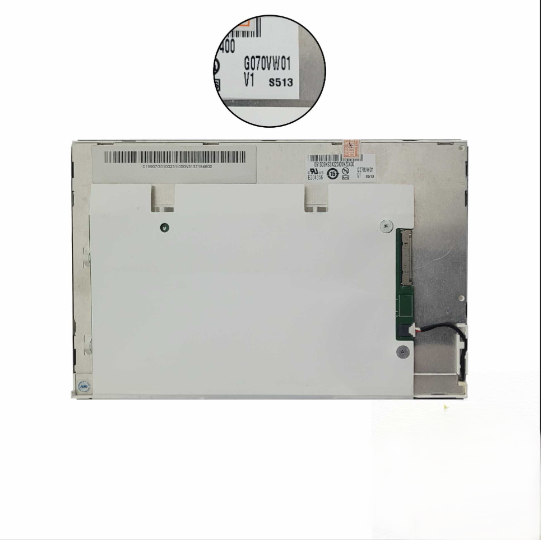

AUO G070VW01-V.1

The AUO G070VW01-V.1 is a premium industrial-grade 7-inch TFT-LCD module built for applications that require sharp image quality, stable operation, and long-term reliability. It uses an a-Si TFT-LCD panel with TN, Normally White, Transmissive technology to provide bright visuals, clear text, and smooth graphics. The display offers an 800(RGB) × 480 WVGA resolution with a pixel density of 133 PPI, making it ideal for HMI panels, industrial machinery, medical devices, vehicle systems, and embedded display projects.

The module includes a built-in WLED backlight system with an integrated LED driver and a typical brightness of 350 cd/m² to 400 cd/m². It delivers a 500:1 contrast ratio and supports up to 262K or 16.2 million colors, depending on the interface configuration. The anti-glare hard-coated surface helps improve readability and reduce reflections in industrial environments.

The AUO G070VW01-V.1 features a 20-pin LVDS interface with 1-channel 6/8-bit support, operating on a typical 3.3V power supply. Its rugged construction supports operating temperatures from -20°C to 70°C, making it suitable for demanding industrial environments and outdoor installations. The WLED backlight is rated for approximately 30,000 hours of service life, ensuring dependable long-term performance.

Key Features:

• 7.0-inch industrial TFT-LCD display
• 800 × 480 WVGA resolution
• 133 PPI pixel density
• TN, Normally White, Transmissive display mode
• 350–400 cd/m² brightness
• 500:1 contrast ratio
• WLED backlight with integrated LED driver
• 20-pin LVDS interface
• Supports 262K / 16.2M colors
• Anti-glare hard-coated surface
• Operating temperature: -20°C to 70°C
• Backlight life up to 30,000 hours
• Suitable for HMI systems, medical devices, automation equipment, industrial controls, and embedded systems
