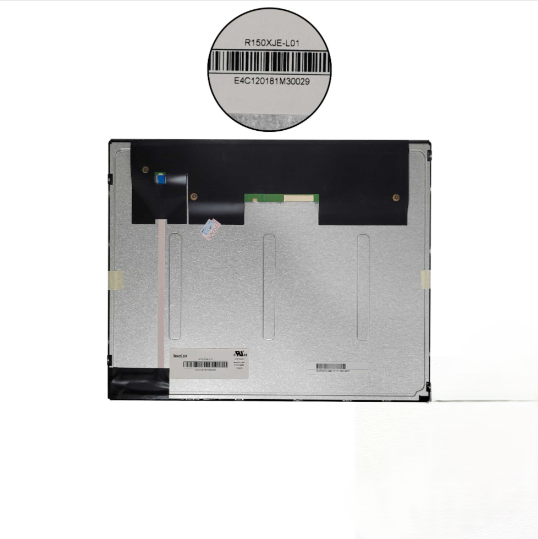

INNOLUX R150XJE-L01

The Innolux R150XJE-L01 is a high-quality 15-inch TFT-LCD panel built for industrial and commercial display applications where durability, image clarity, and stable performance are essential. It offers a resolution of 1024 × 768 pixels in XGA format, providing sharp text, detailed graphics, and clear interface visibility. The panel uses Super MVA technology with a normally black transmissive display mode, delivering excellent contrast, deeper blacks, and wide viewing angles of 85° in all directions.

This display module supports up to 16.2 million colors and features an anti-glare hard-coated surface for improved readability in bright environments. With a brightness level of 350 cd/m² and a contrast ratio of 2500:1, the screen delivers vivid image quality and consistent performance in industrial workspaces, control rooms, factory equipment, and professional monitoring systems.

The R150XJE-L01 uses a 20-pin LVDS interface with 1-channel 6/8-bit support, making it suitable for integration into industrial computers, TFT monitors, vehicle displays, amusement machines, medical systems, and automation equipment. It also includes a built-in LED driver and WLED backlight system with a service life of over 50,000 hours, ensuring long-term reliability and low maintenance requirements.

The module is designed for demanding environments, with an operating temperature range of -10°C to 65°C and storage capability from -25°C to 65°C. Its slim profile, durable construction, and landscape orientation make it an excellent replacement panel or upgrade option for industrial display systems.

Key Features:

• 15.0-inch industrial TFT-LCD display
• 1024 × 768 XGA resolution
• Super MVA, Normally Black display mode
• Wide 85° viewing angles in all directions
• 350 cd/m² brightness
• 2500:1 contrast ratio
• Anti-glare hard-coated surface
• 20-pin LVDS interface
• WLED backlight with 50,000-hour life
• Built-in LED driver
• Supports 16.2 million colors
• Operating temperature: -10°C to 65°C
• Suitable for industrial PCs, medical devices, factory automation, HMI panels, and vehicle displays
