PE EDMGRB8KJF

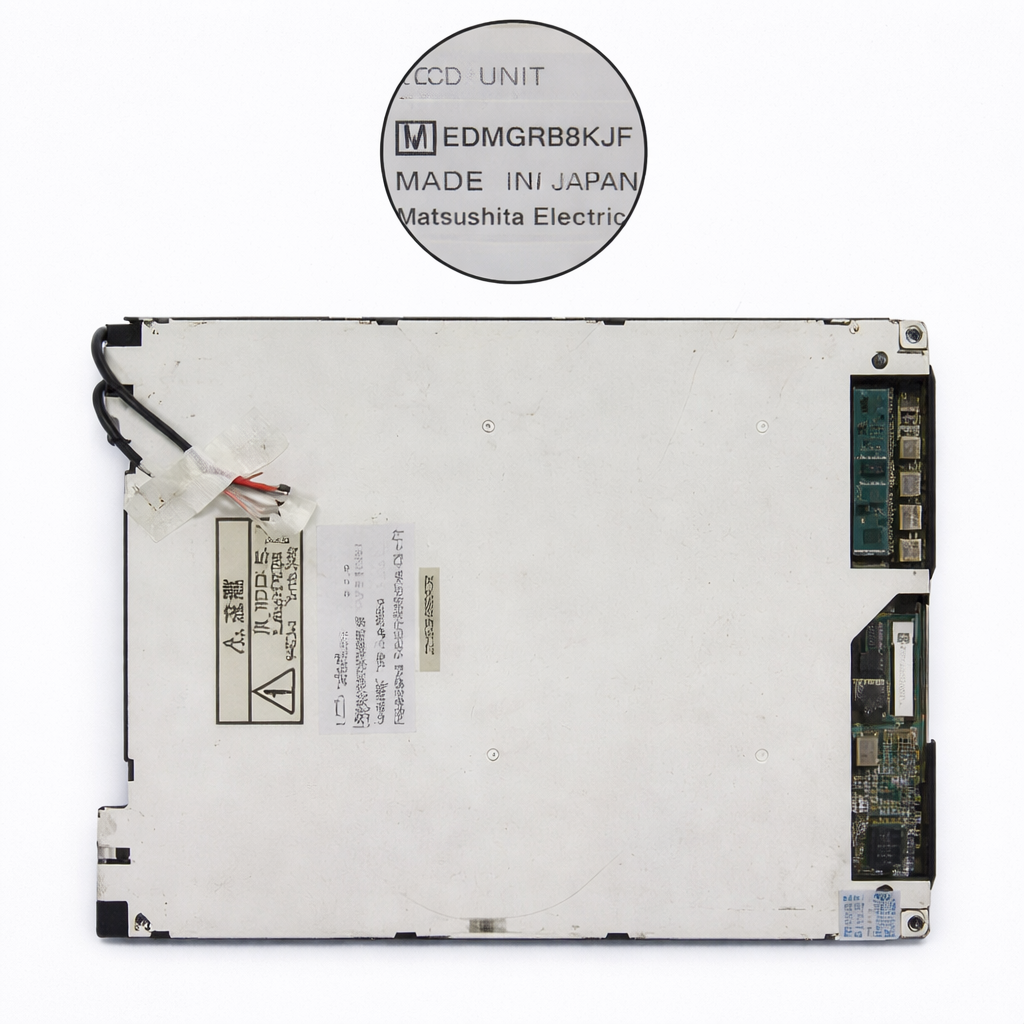

The PE EDMGRB8KJF is an industrial-grade LCD display module commonly used in embedded systems and legacy equipment. It is originally associated with Panasonic as a source-controlled LCD component, and is widely recognized in industrial display applications for its reliability and long lifecycle.

This module features a 7.8-inch diagonal screen size with a resolution of 640×480 (VGA), providing clear and stable visuals suitable for text-based interfaces, control systems, and basic graphical displays. It uses a 4:3 aspect ratio, which makes it ideal for older industrial machines and equipment that rely on traditional display formats.

The display is built using CSTN/FSTN LCD technology with a transmissive mode, delivering acceptable readability in controlled lighting environments. It typically offers a brightness around 60 cd/m² and a moderate contrast ratio, which is sufficient for indoor industrial usage.

For backlighting, the module uses a CCFL (Cold Cathode Fluorescent Lamp) system, which provides uniform illumination across the screen. However, it requires an external inverter for operation. The backlight is designed for long operational life, making it suitable for continuous industrial use.

The interface of this display is typically a parallel data interface (8-bit) with a 20-pin connector, allowing compatibility with embedded controllers and industrial driver boards. It supports standard input voltages (3.3V / 5V), making integration relatively straightforward in legacy and existing systems.

Mechanically, the module has a compact rectangular form factor with an approximate outline size of 195.2 × 137.5 mm and an active area of 157.42 × 118.06 mm. It also includes options such as resistive touch in some variants, making it suitable for interactive HMI applications.
