PE HLM8620-6

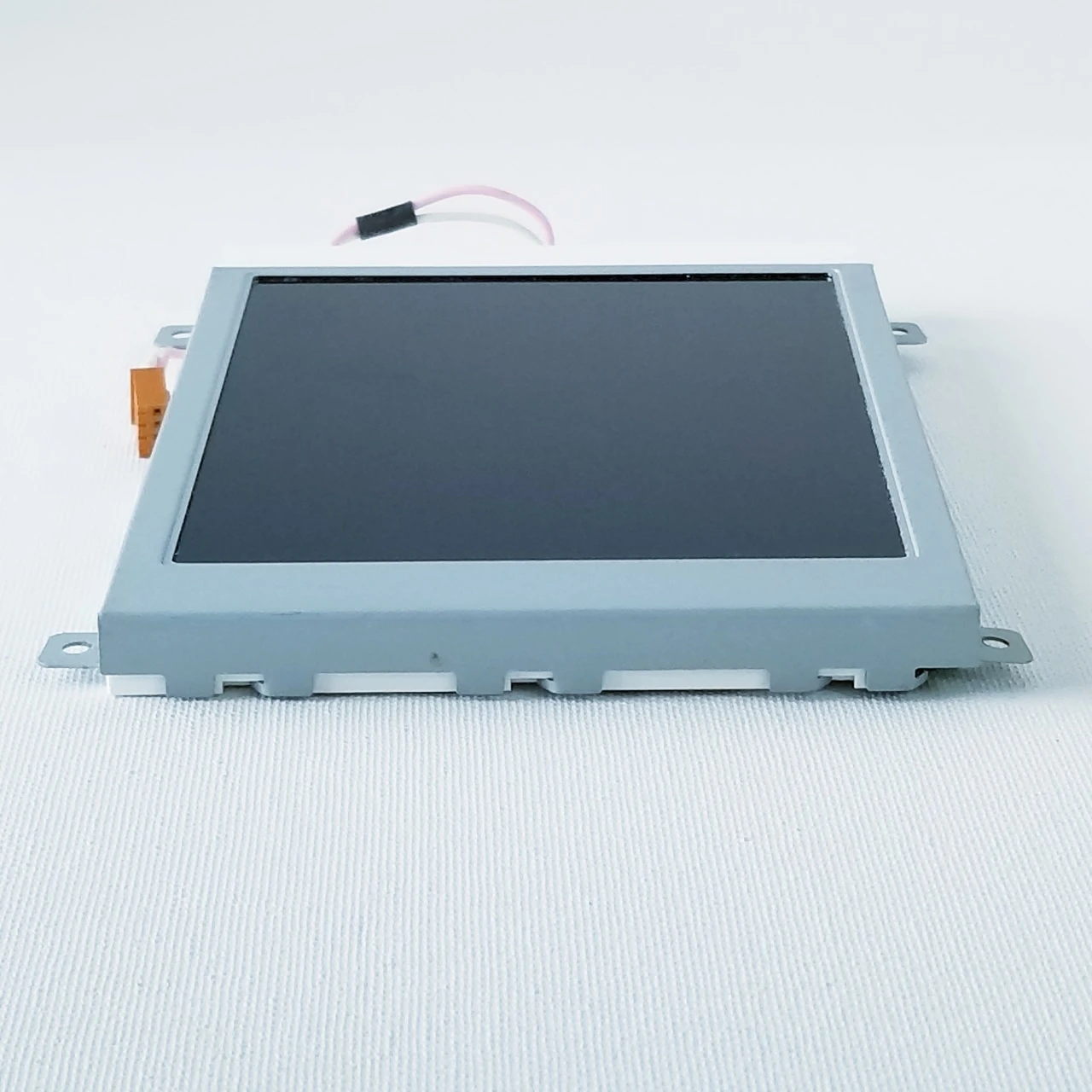

PE HLM8620-6 is a high-performance 5.7-inch industrial FSTN (Film Super Twisted Nematic) monochrome graphic LCD module originally manufactured in the HOSIDEN HLM8620 display family for professional machine interface and embedded controller applications. This industrial display features 320 × 240 QVGA dot resolution in landscape format, allowing clear presentation of machine parameters, menu graphics, alarm symbols, waveform data, and operational text with excellent readability. The module provides a 115.17 × 86.37 mm active viewing area and 70 PPI pixel density, making it highly suitable for medium-size industrial operator panels and instrumentation consoles.

Built with negative transmissive black-and-white FSTN/STN display technology, PE HLM8620-6 offers significantly improved monochrome contrast and sharper visual clarity compared with ordinary passive LCD modules. The screen uses one CCFL edge-light backlight system with approximately 250 cd/m² brightness and a long lamp service life of up to 50,000 hours, ensuring stable visibility in low-light factory environments and continuous-duty machine operation. Its black background with white dot display structure makes critical machine information easy to read for operators during long working shifts.

This graphic LCD module is designed with a 4-bit parallel data interface and standard industrial 5V logic architecture for stable communication with PLC display boards, CNC motherboards, embedded controllers, and OEM machine electronics. The module generally uses a 14-pin FPC signal arrangement and industrial mounting brackets for secure integration into legacy control systems. Official specification documents for the HLM8620 family confirm transmissive monochrome operation, 1/240 duty driving method, and rugged TAB construction specifically developed for long-term industrial reliability.

PE HLM8620-6 supports an industrial operating temperature range of approximately 0°C to +50°C with storage tolerance from -20°C to +60°C, making it suitable for production machinery, textile machines, diagnostic instruments, packaging systems, and process control terminals. Electronics repair communities consistently emphasize that legacy monochrome industrial LCDs require exact part-number replacement because backlight voltage, LCD bias supply, frame timing, and connector mapping can differ across similar looking modules, so datasheet verification is always essential before installation.
