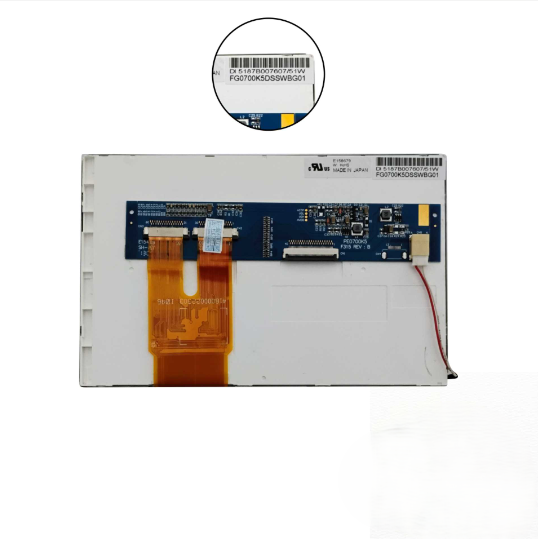

HI-LINK FG0700K5DSSWBG01

HI-LINK FG0700K5DSSWBG01 is a high-performance 7-inch industrial a-Si TFT-LCD module manufactured under the Data Image / HI-LINK display family for professional machine interface and embedded visualization applications. This LCD module features 800 × 480 WVGA resolution with RGB vertical stripe architecture, delivering crisp text, stable graphical display, and accurate color rendering for operator control systems. The panel supports 262K colors and uses TN Normally White transmissive technology to ensure bright and responsive screen performance during continuous machine usage.

The display is equipped with a white LED backlight system rated for approximately 20,000 hours of service life, offering uniform illumination, low power consumption, and reliable long-duration operation. With brightness ranging around 320 to 500 cd/m² depending on production configuration, the module provides strong readability in indoor industrial and semi-bright ambient environments. It also includes an anti-glare surface treatment that helps reduce unwanted reflections and improves operator viewing comfort.

HI-LINK FG0700K5DSSWBG01 has an active display area of 152.4 × 91.44 mm within a compact outline body of approximately 165 × 104.44 × 9.7 mm, making it highly suitable for slim HMI touch monitors, industrial consoles, automotive infotainment replacements, and portable embedded systems. The module uses a 40-pin Parallel RGB (1 channel, 6-bit) interface with 3.3V operating supply, enabling stable signal communication with industrial motherboards, PLC controllers, ARM boards, and OEM processor units. It supports a 60Hz refresh rate for smooth and stable visual output.
