KYOCERA KCS057QV1BH-G20

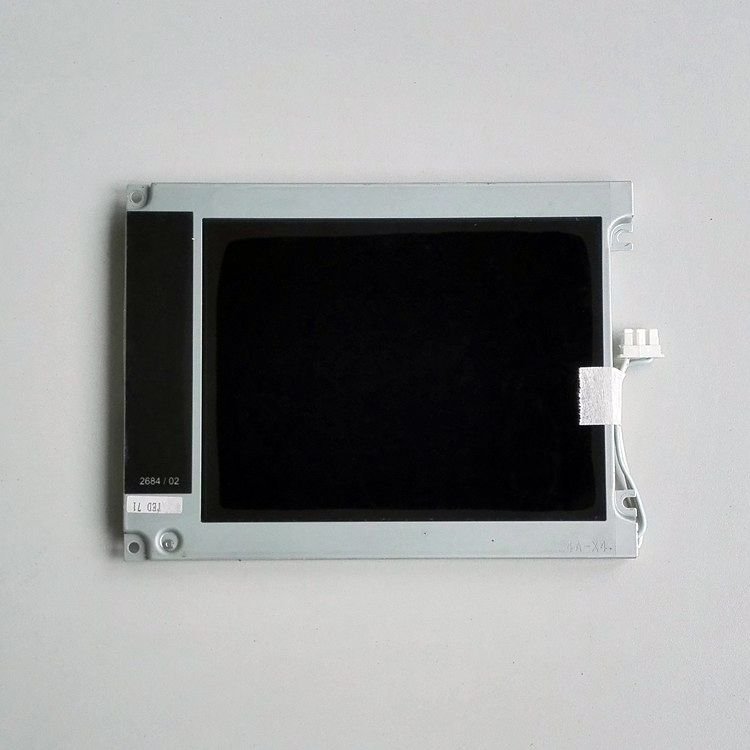

KYOCERA KCS057QV1BH-G20 is a high-reliability 5.7-inch industrial passive matrix color CSTN-LCD module manufactured by Kyocera for professional embedded display and machine visualization applications. The module features 320 × 240 QVGA resolution with RGB vertical stripe pixel arrangement, delivering clear machine parameters, graphical symbols, menu screens, and stable color presentation for operator interface systems. Its STN normally black transmissive display structure offers improved visual sharpness and dependable industrial readability, making it suitable for long-term control panel use.

The display provides approximately 200 cd/m² brightness with a 40:1 contrast ratio and uses a single CCFL backlight system rated up to 40,000 hours, ensuring uniform illumination and long service life during continuous-duty industrial operations. One of the most valued technical advantages of this model is its field-replaceable lamp architecture, which helps reduce long-term maintenance cost because the backlight can be serviced without replacing the full module. This serviceability feature makes it highly practical for older OEM equipment and industrial refurbishment projects.

KYOCERA KCS057QV1BH-G20 comes with an active display area of 115.2 × 86.4 mm inside a compact rugged body of approximately 154.6 × 114.8 × 9 mm. It uses a 15-pin 8-bit parallel data interface with 5V input supply, allowing stable communication with industrial motherboard systems, PLC display boards, process controllers, weighing machines, sewing machines, bank terminals, chart recorders, and legacy embedded hardware. Its wide viewing support and landscape mounting design further improve machine panel integration flexibility.
