PE WG320240BX-TTI-VZ

The PE WG320240BX-TTI-VZ is a rugged 5.7-inch monochrome graphic LCD module developed for industrial and professional applications that require dependable text and graphic display performance. It provides a 320 × 240 pixel resolution with a 4:3 aspect ratio and an active display area of approximately 115.18 × 86.38 mm, making it suitable for industrial HMIs, medical instruments, machine controls, monitoring systems, and embedded electronics. The overall module size is approximately 160 × 109 × 12 mm.

The display uses STN or FSTN monochrome display technology depending on the exact variant. The TTI-VZ version is commonly associated with FSTN black negative transmissive display mode with white LED backlight, offering sharp text visibility and improved contrast for industrial environments. The module provides a 6 o’clock viewing direction and includes an external contrast adjustment option through a potentiometer.

The WG320240BX-TTI-VZ includes a long-life LED backlight system with an expected life of approximately 50,000 hours. It is built around the S1D13700 or T6963C controller and communicates through an 8-bit 6800/8080 parallel interface. The module operates on a standard 5V logic supply and includes a built-in negative voltage generator for LCD drive support. Some variants also support optional temperature compensation and analog touch panel integration.

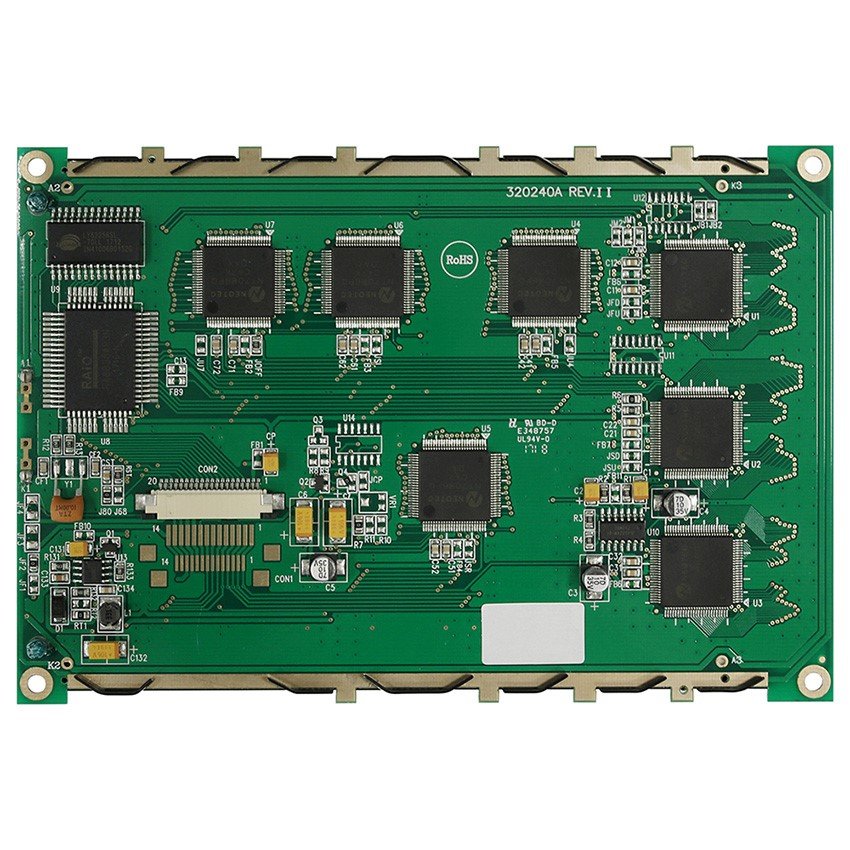

Designed for demanding industrial environments, the module supports an operating temperature range of -20°C to 70°C and storage temperatures from -30°C to 80°C. Its COB structure, rugged frame, and reliable monochrome technology make it suitable for long-term use in automation systems, process control equipment, factory machinery, and portable instrumentation.

Key Features:

• 5.7-inch monochrome graphic LCD display
• 320 × 240 QVGA resolution
• STN / FSTN monochrome display technology
• FSTN black negative transmissive display mode
• White LED backlight
• Approximate backlight life: 50,000 hours
• S1D13700 or T6963C controller
• 6800 / 8080 8-bit parallel interface
• Built-in negative voltage generator
• Optional temperature compensation support
• Optional analog touch panel support
• 5V operating voltage
• Active area: 115.18 × 86.38 mm
• Module size: 160 × 109 × 12 mm
• Operating temperature: -20°C to 70°C
• Storage temperature: -30°C to 80°C
• Suitable for industrial control systems, medical devices, automation equipment, CNC machines, and embedded applications
