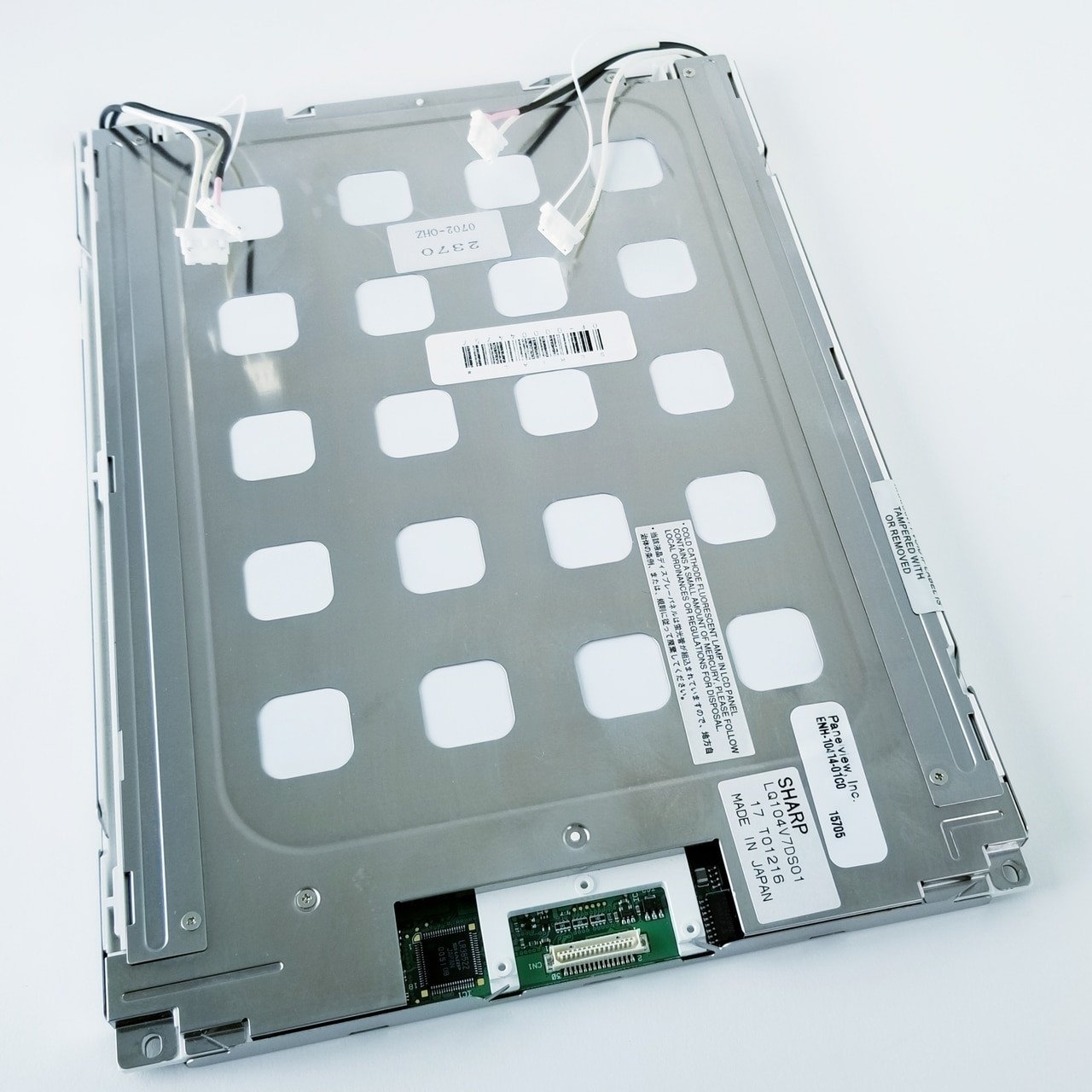

SHARP LQ104V7DS01

The Sharp LQ104V7DS01 is a rugged 10.4-inch a-Si TFT-LCD module engineered for industrial applications where dependable image quality and sunlight readability are essential. It offers a VGA resolution of 640 × 480 pixels with a 4:3 aspect ratio and an active display area of 211.2 × 158.4 mm. The module dimensions are approximately 245 × 195 × 11.4 mm, making it suitable for industrial HMIs, embedded systems, medical instruments, portable test equipment, and outdoor control panels.

The display uses TN, Normally White, Transflective TFT technology with RGB vertical stripe arrangement and supports up to 262K colors through a 6-bit signal structure. It delivers a typical brightness of 250 cd/m² with a contrast ratio of 250:1, helping provide clear visibility in bright indoor environments and even under direct sunlight. The transflective panel structure uses ambient light to improve visibility outdoors, while the anti-glare and anti-reflective surface treatment further reduces unwanted reflections.

The LQ104V7DS01 includes a dual CCFL backlight system with top and bottom edge lighting and a rated lamp life of more than 50,000 hours. It uses a 31-pin Parallel RGB interface with 1-channel 6-bit signal input and supports both 3.3V and 5.0V operating voltages. The module also supports reverse scan functionality and can be mounted in different orientations for flexible industrial integration.

Built for demanding industrial environments, the panel supports an operating temperature range of -10°C to 65°C and storage temperatures from -30°C to 70°C. It is commonly used in industrial automation, factory equipment, medical systems, marine electronics, agricultural machines, and embedded control systems where sunlight readability and rugged performance are important. Community discussions often note that older industrial LCD modules require the correct controller board, inverter, and connector compatibility when replacing or integrating into modern systems.

Key Features:

• 10.4-inch industrial TFT-LCD display
• 640 × 480 VGA resolution
• TN, Normally White, Transflective display mode
• Sunlight-readable design
• 262K color support
• 250 cd/m² brightness
• 250:1 contrast ratio
• Anti-glare and anti-reflective surface
• Dual CCFL backlight
• Backlight life over 50,000 hours
• 31-pin Parallel RGB (1-channel, 6-bit) interface
• 3.3V / 5.0V operating voltage
• Active area: 211.2 × 158.4 mm
• Module size: 245 × 195 × 11.4 mm
• Operating temperature: -10°C to 65°C
• Storage temperature: -30°C to 70°C
• Suitable for industrial HMIs, medical devices, marine systems, outdoor control equipment, and embedded applications
