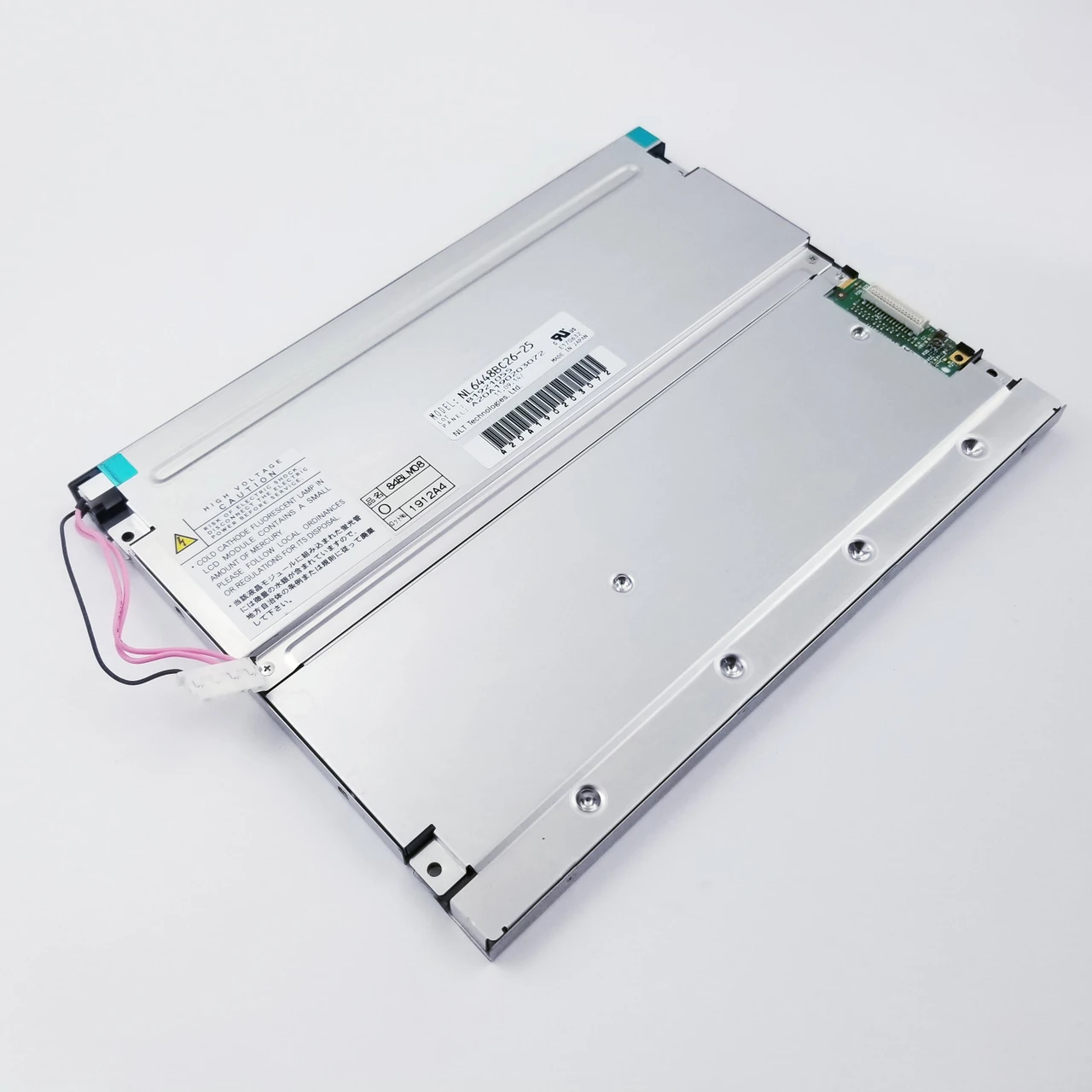

NEC NL6448BC26-25

NEC NL6448BC26-25 is a high-performance 8.4-inch color a-Si TFT-LCD module manufactured by NEC LCD Technologies for advanced industrial visualization and professional machine interface applications. This premium industrial LCD panel features 640 × 480 VGA pixel resolution with RGB vertical stripe architecture, delivering crisp text readability, stable graphics rendering, and accurate color presentation for industrial operator systems and machine monitor assemblies. The module supports 262K display colors with 6-bit digital RGB processing and uses TN Normally White transmissive display technology to provide bright, responsive, and dependable screen performance during continuous-duty operation. NEC officially classifies this series specifically for industrial use.

One of the major highlights of NEC NL6448BC26-25 is its industrial-grade optical durability. The display offers approximately 600 cd/m² high brightness with a strong 600:1 contrast ratio, anti-glare hard-coated screen surface, and wide viewing angle performance for reliable readability in factory floors, machine rooms, and embedded control environments. It is equipped with an edge-light dual CCFL backlight system featuring replaceable lamp architecture, which gives easier maintenance and long-term serviceability in OEM equipment. The module also supports reversible 180° scan installation for flexible machine design integration.

This industrial TFT module has an active viewing area of approximately 170.88 × 128.16 mm packed inside a rugged mechanical body measuring about 200 × 152 × 10.5 mm, making it ideal for OEM industrial monitor assemblies and machine display replacement projects. NEC NL6448BC26-25 uses a 31-pin 1-channel 6-bit CMOS digital interface with 3.3V / 5V logic compatibility, enabling stable communication with PLC systems, CNC display boards, medical controllers, and embedded processor units. Typical power consumption is around 5.3W, which makes it dependable for long-running industrial applications.
