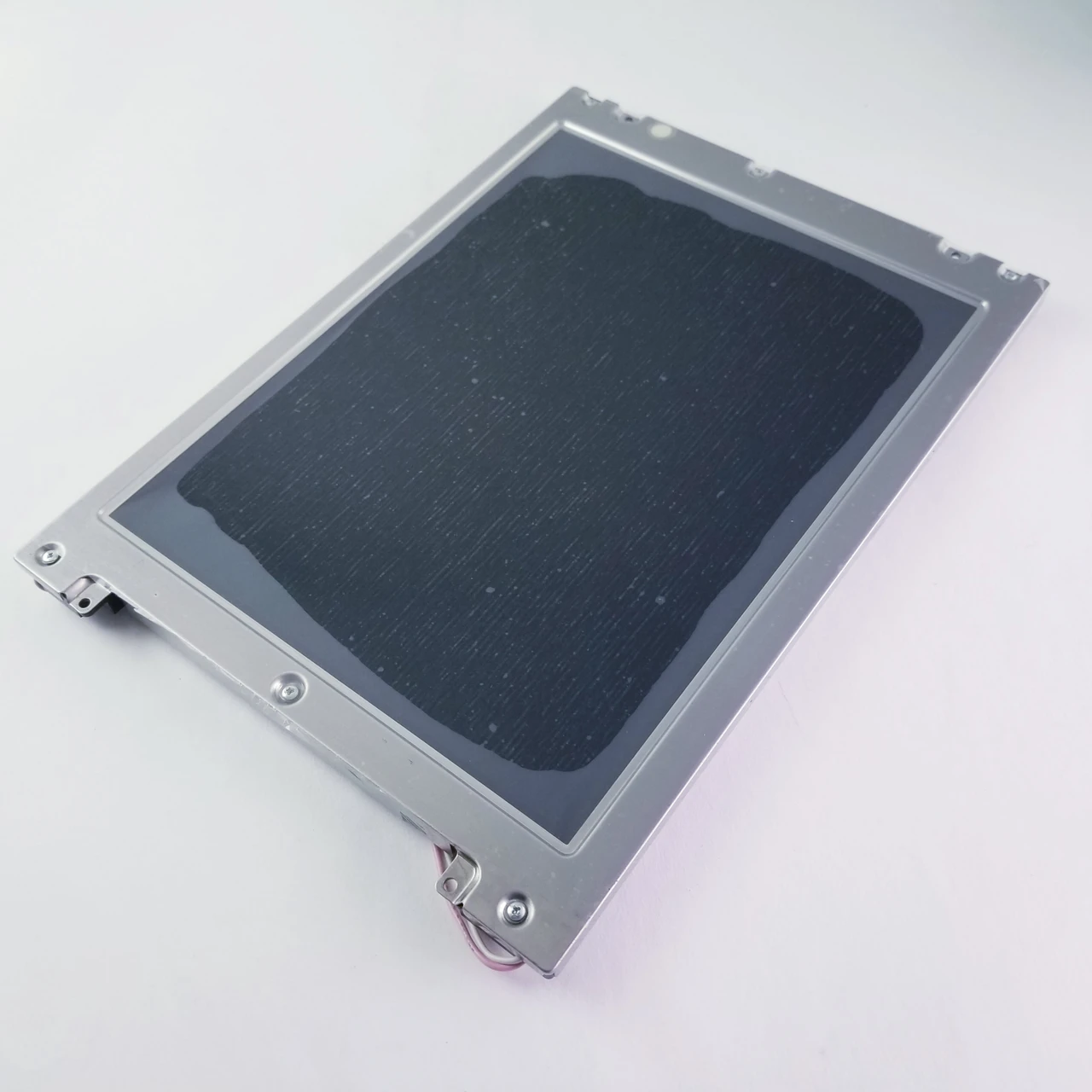

TOSHIBA LTM10C210

TOSHIBA LTM10C210 is a high-performance 10.4-inch color a-Si TFT-LCD module manufactured by Toshiba for advanced industrial visualization and professional machine interface applications. This premium industrial LCD panel features 640 × 480 VGA pixel resolution with RGB vertical stripe architecture, delivering crisp text readability, stable graphics rendering, and accurate color presentation for industrial operator systems and machine monitor assemblies. The module supports 262K display colors with 1-channel 6-bit parallel RGB processing and uses TN Normally White transmissive display technology to provide bright, responsive, and dependable screen performance during continuous-duty operation.

One of the major highlights of TOSHIBA LTM10C210 is its industrial-grade optical durability. The display offers approximately 400 cd/m² high brightness with wide viewing angle support (Horizontal 110°, Vertical 90°) and anti-glare viewing performance for reliable readability in factory floors, machine rooms, and embedded control environments. It is equipped with twin CCFL sidelight lamps rated for approximately 50,000 hours service life, delivering uniform illumination and stable long-term operation.

This industrial TFT module has an active viewing area of approximately 211.2 × 158.4 mm packed inside a rugged mechanical body measuring about 265 × 188.8 × 12 mm, making it ideal for OEM industrial monitor assemblies and machine display replacement projects. TOSHIBA LTM10C210 uses a 31-pin parallel RGB digital interface with 5V logic compatibility, enabling stable communication with PLC systems, CNC display boards, medical controllers, and embedded processor units. Toshiba also confirms full mechanical compatibility with LTM10C209A, LTM10C209H, and LTM10C273 series for easier industrial retrofit integration.
