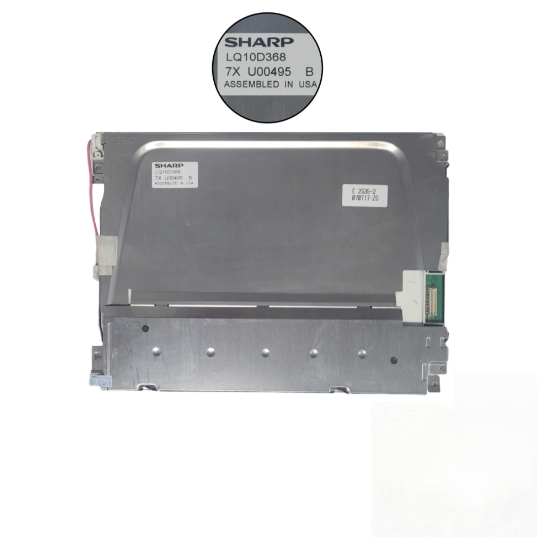

SHARP LQ10D368
₹12,250.00
The Sharp LQ10D368 is a 10.4-inch TFT-LCD display module designed for industrial and commercial equipment. It offers 640 × 480 VGA resolution, excellent brightness, and wide viewing angles, making it suitable for automation systems, medical devices, measuring instruments, and HMI control panels.
The Sharp LQ10D368 is a premium industrial-grade TFT-LCD module built for applications requiring stable, long-term display performance. Featuring a 10.4-inch screen with VGA resolution of 640 × 480 pixels, this module provides sharp image quality, clear text visibility, and accurate color reproduction.
This LCD module uses a color active matrix TFT panel with RGB vertical stripe technology and supports up to 262,144 colors for enhanced display performance. It is designed with a high-brightness CCFL backlight, allowing good readability even in challenging lighting environments. The anti-glare surface treatment further improves visibility and reduces reflections during operation.
The module supports an 18-bit parallel RGB interface and is commonly used in industrial control systems, medical instruments, banking terminals, CNC machines, test equipment, and factory automation panels. Its durable construction, wide operating temperature support, and long-life backlight make it ideal for demanding industrial environments.
The Sharp LQ10D368 is also known for its reliable performance in legacy display replacement applications where a high-quality 10.4-inch VGA TFT panel is required.
Key Features:
- 10.4-inch TFT-LCD display module
- 640 × 480 VGA resolution
- 262,144 color support
- High brightness with CCFL backlight
- Wide viewing angle for better visibility
- Anti-glare surface coating
- 18-bit parallel RGB interface
- Durable industrial-grade construction
- Suitable for HMI panels, automation systems, medical devices, and CNC equipment
- Long-life backlight with up to 50,000 hours service life
- Compact design with stable performance in industrial environments
